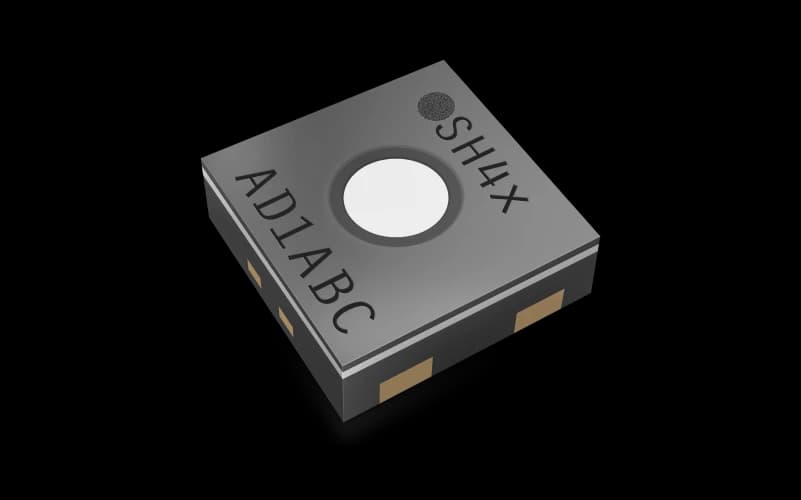

SHT41-AD1F

New

±1.8% / max. ±2.5% RH digital humidity sensor / filter membrane

Contact sales

Specification

Humidity
Typ. relative humidity accuracy
1.8
1.8 %RH
Operating relative humidity range
0 - 100
0 - 100 %RH
Response time (τ63%)
4
4 s
Calibration certificate
Factory calibration
Factory calibration
Temperature
Typ. temperature accuracy
0.2
0.2 °C
Operating temperature range [°C]
-40 - 125
-40 - 125 °C
Response time (τ63%)
2
2 s
Generic
Supply voltage
1.08 - 3.6
1.08 - 3.6 V
Average supply current
0.4
0.4 uA
Interfaces
I²C
I²C
Size (LxWxH)
1.5 x 1.5 x 0.69
1.5 x 1.5 x 0.69 mm³
Packaging size
2500, 10000
2500, 10000 pcs (T&R)

Downloads

Name Type Date File Size
Datasheet SHT4x

04/2024

File

964.0 KB

Datasheet 04/2024 PDF 964.0 KB
Creep mitigation SHT4xX

05/2022

File

277.8 KB

Application note 05/2022 PDF 277.8 KB
Handling instructions SHT

03/2023

File

453.7 KB

Application note 03/2023 PDF 453.7 KB
Heater decontamination SHT4xX

02/2024

File

386.5 KB

Application note 02/2024 PDF 386.5 KB
Humidity at a glance

06/2021

File

178.3 KB

Application note 06/2021 PDF 178.3 KB
Introduction to humidity

08/2009

File

224.9 KB

Application note 08/2009 PDF 224.9 KB
Specification statement and testing humidity sensors

04/2021

File

306.8 KB

Application note 04/2021 PDF 306.8 KB
Testing at ambient conditions SHT

10/2022

File

443.0 KB

Application note 10/2022 PDF 443.0 KB
Contamination guide for humidity and temperature sensors

10/2024

File

849.1 KB

Guide 10/2024 PDF 849.1 KB
Contamination guide for humidity and temperature sensors chinese

11/2024

File

2.9 MB

Guide 11/2024 PDF 2.9 MB
Design-in guide SHT/STS

04/2024

File

822.1 KB

Guide 04/2024 PDF 822.1 KB
Design-in guide SHT/STS chinese

06/2024

File

1.2 MB

Guide 06/2024 PDF 1.2 MB
Transition guide for SHT3x to SHT4x

05/2024

File

411.2 KB

Guide 05/2024 PDF 411.2 KB
Transition guide for SHTC1 to SHT4x

12/2023

File

387.3 KB

Guide 12/2023 PDF 387.3 KB
Transition guide for SHTC3 to SHT4x

12/2023

File

388.1 KB

Guide 12/2023 PDF 388.1 KB
Transition guide for SHTW2 to SHT4x

08/2020

File

347.9 KB

Guide 08/2020 PDF 347.9 KB
Embedded drivers humidity

10/2021

Link

-

Software 10/2021 Link -
SEK-ControlCenter (all devices)

10/2021

Link

-

Software 10/2021 Link -
Calibration certification SHT/STS

08/2021

File

110.4 KB

Certificate 08/2021 PDF 110.4 KB
REACH and RoHS declaration SHT/STS

07/2024

File

116.9 KB

Certificate 07/2024 PDF 116.9 KB
Humidity brochure chinese

06/2023

File

5.1 MB

Flyer 06/2023 PDF 5.1 MB
Humidity product flyer

10/2024

File

1.0 MB

Flyer 10/2024 PDF 1.0 MB
Indoor air quality brochure

11/2024

Link

7.7 MB

Flyer 11/2024 Link 7.7 MB

Sensor evaluation

Buy the following products to evaluate this sensor

Name Description Series Category

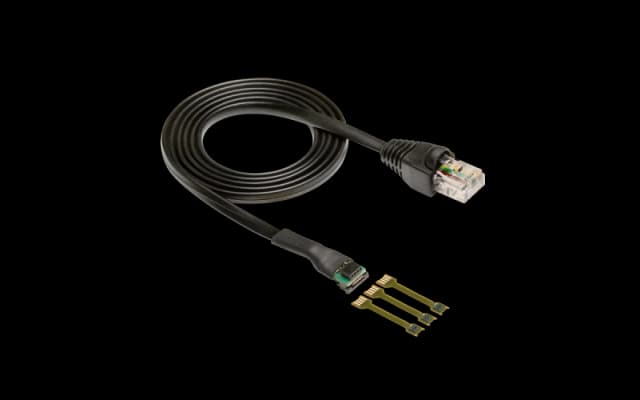

SEK-SHT41
Humidity and temperature evaluation kit SHT41 SEK-SHTxx Humidity
