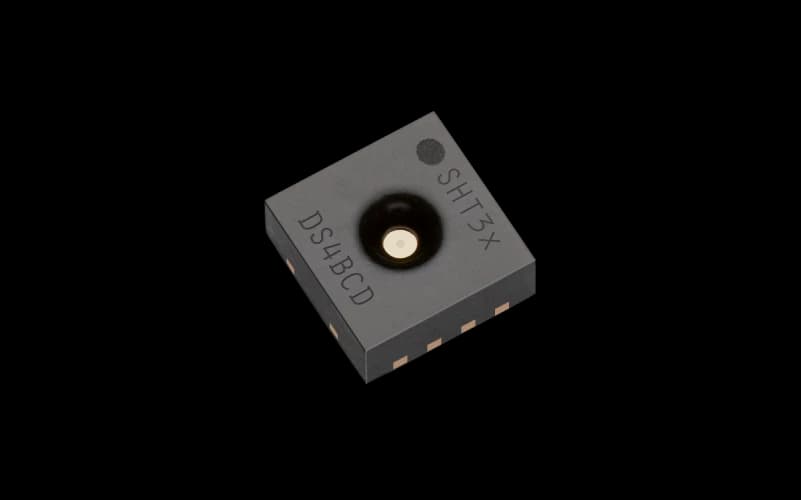

SHT30-DIS-B
±2% (10-90%RH) Digital humidity and temperature sensor
The digital SHT3x humidity sensor series takes sensor technology to a new level. As the successor of the SHT2x series it sets the industry standard in humidity sensing. The SHT3x humidity sensor series consists of a low-cost version with the SHT30 humidity sensor, a standard version with the SHT31 humidity sensor, and a high-end version with the SHT35 humidity sensor. Automotive grade versions are also available. The SHT3x humidity sensor series combines multiple functions and various interfaces (I²C, analog voltage output) with a applications-friendly, very wide operating voltage range (2.15 to 5.5 V). The SHT3x humidity sensor is available in both large and small volumes.
Specification
| Humidity | |||
|---|---|---|---|
| Typ. relative humidity accuracy
2
| 2 | %RH | |
| Operating relative humidity range
0 - 100
| 0 - 100 | %RH | |
| Response time (τ63%)
8
| 8 | s | |
| Calibration certificate
Factory calibration
| Factory calibration |
| Temperature | |||
|---|---|---|---|
| Typ. temperature accuracy
0.2
| 0.2 | °C | |
| Response time (τ63%)
> 2
| > 2 | s |
| Generic | |||
|---|---|---|---|
| Supply voltage
2.15 - 5.5
| 2.15 - 5.5 | V | |
| Average supply current
1.7
| 1.7 | uA | |
| Max. supply current
1500
| 1500 | uA | |
| Operating temperature range [°C]
-40 - 125
| -40 - 125 | °C | |
| Interfaces
I²C
| I²C | ||
| Size (LxWxH)
2.5 x 2.5 x 0.9
| 2.5 x 2.5 x 0.9 | mm³ | |
| Packaging size
2500, 10000
| 2500, 10000 | pcs (T&R) |
Downloads
Accessories
| Name | Description | Series | Category |
|---|---|---|---|
 SF2 filter cap | Filter cap for SHT2x to SHT4x humidity and temperature sensors | SFx filter cap | Humidity |
Sensor evaluation
Buy the following products to evaluate this sensor
| Name | Description | Series | Category |
|---|---|---|---|
 SEK-SensorBridge | Connecting bridge with two sensor ports | SEK-SensorBridge | |
 SEK-SHT31 | Humidity and temperature evaluation kit SHT31 | SEK-SHTxx | Humidity |
