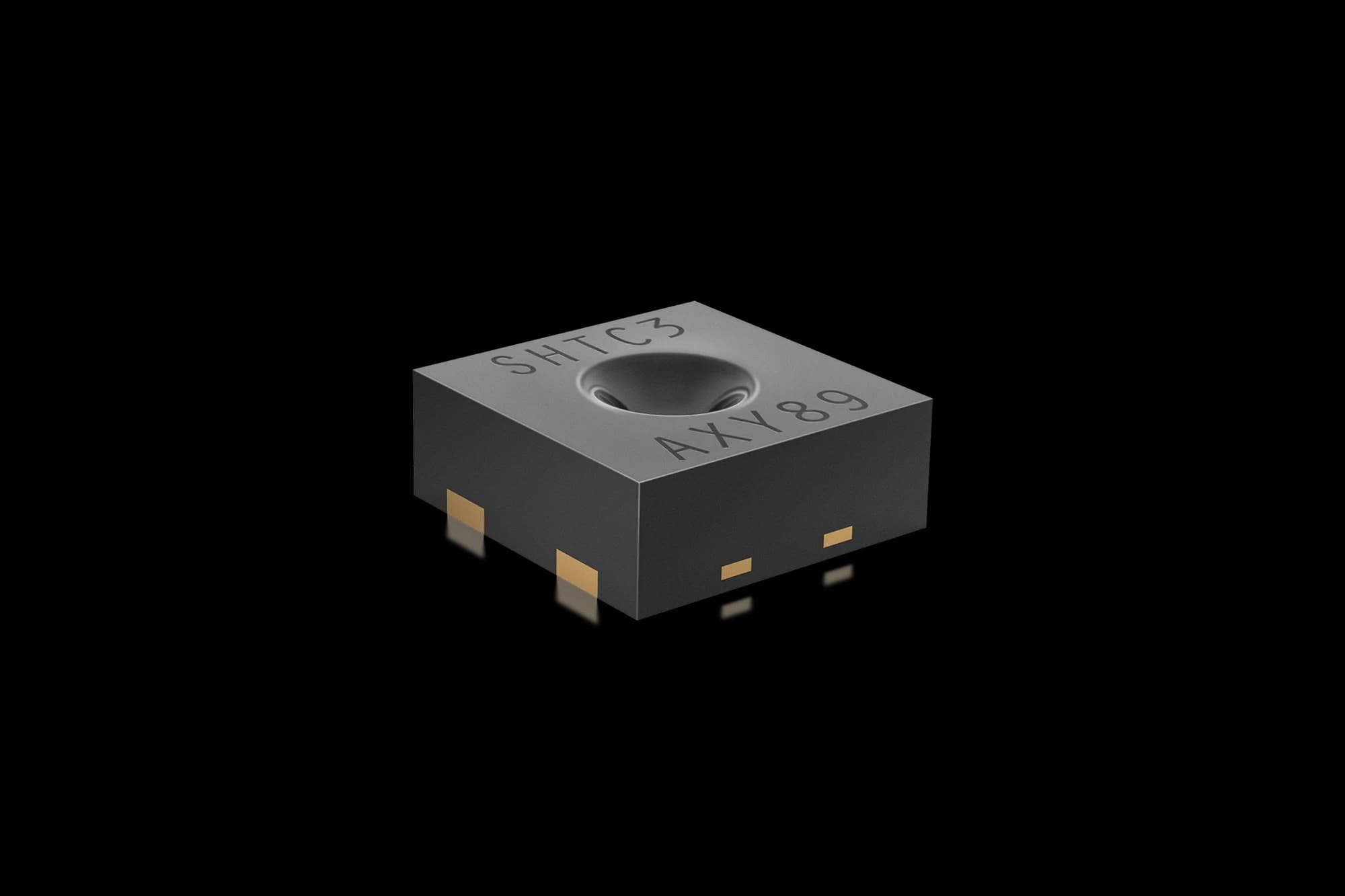

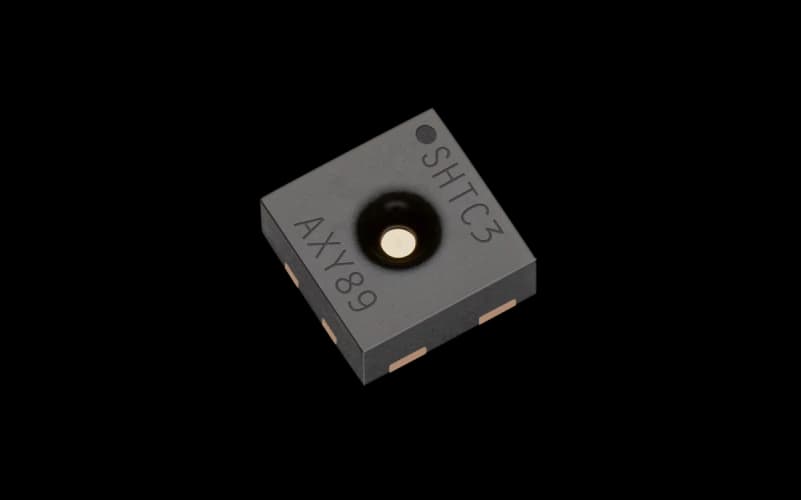

SHTC3
±2% (20-80%RH) Digital humidity and temperature sensor
The SHTC3 is a digital humidity and temperature sensor optimized for battery-driven applications and high-volume consumer electronics. The sensor has been designed to overcome conventional limits in size and power consumption in order to fulfill current and future requirements, and offers an unmatched performance-price ratio. The SHTC3 improves the performance and flexibility of the SHTC1, while maintaining its proven reliability. Sensirion’s CMOSens® Technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a bandgap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode. The small 2 x 2 x 0.75 mm3 DFN package enables applications in even the most limited space. The sensor covers a humidity measurement range of 0 to 100% RH and a temperature measurement range of -40°C to 125°C with a typical accuracy of ±2% RH and ±0.2°C. The broad supply voltage of 1.62 V to 3.6 V and an energy budget below 1 μJ per measurement make the SHTC3 perfectly suited to mobile or wireless applications powered by battery. With the industry-proven quality and reliability of Sensirion’s humidity and temperature sensors providing constant accuracy over a large measurement range, the SHTC3 offers the best performance-price ratio. Tape and reel packaging combined with suitability for standard SMD assembly processes make the SHTC3 ideal for high-volume applications.
Specification
| Humidity | |||
|---|---|---|---|
| Typ. relative humidity accuracy
2
| 2 | %RH | |
| Operating relative humidity range
0 - 100
| 0 - 100 | %RH | |
| Response time (τ63%)
8
| 8 | s | |
| Calibration certificate
Factory calibration
| Factory calibration |
| Temperature | |||
|---|---|---|---|
| Typ. temperature accuracy
0.2
| 0.2 | °C | |
| Response time (τ63%)
5
| 5 | s |
| Generic | |||
|---|---|---|---|
| Supply voltage
1.62 - 3.6
| 1.62 - 3.6 | V | |
| Average supply current
0.5
| 0.5 | uA | |
| Max. supply current
570
| 570 | uA | |
| Operating temperature range [°C]
-40 - 125
| -40 - 125 | °C | |
| Interfaces
I²C
| I²C | ||
| Size (LxWxH)
2 x 2 x 0.7
| 2 x 2 x 0.7 | mm³ | |
| Packaging size
500(Sampling), 1000, 10000
| 500(Sampling), 1000, 10000 | pcs (T&R) |
