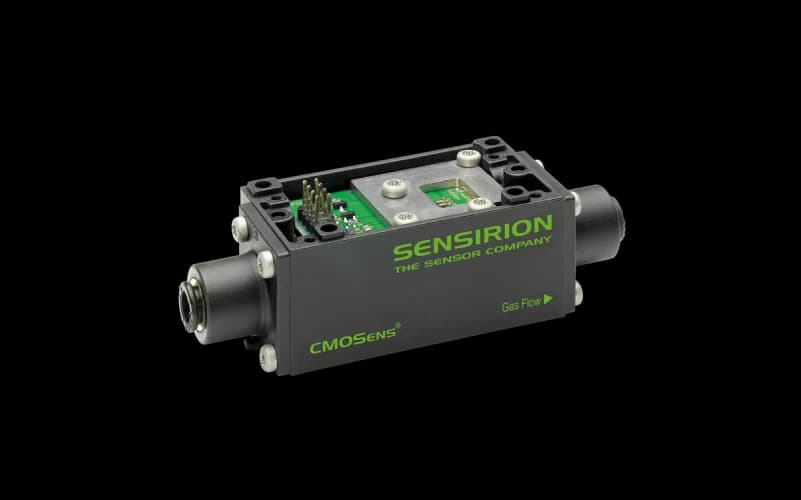

SFM4100-20-AIR
NRNDPressure-resistant flow sensor for air, 20slm, push-in fittings
Designed for anaesthesia equipment, the CMOSens® mass flow meter SFM4100 precisely measures air and other non-aggressive gases. It provides an impressively wide dynamic measuring range up to 20 slm. The sensor unit has a digital I²C interface, provides a fully calibrated and temperature compensated output signal, and operates reliably at pressures of up to 7 bar.
Its outstanding long-term stability makes the SFM4100 first choice for products that require a high rate of deployment with long service intervals. For OEM projects, more than one gas calibration can be stored simultaneously in each sensor device. Self-test features allow testing of the entire signal chain (from capture of the analogue signal through digital signal chain) while the mass flow meter is in use. This makes the SFM4100 an optimal solution for safety-critical applications.
Specification
| Gas flow | |||
|---|---|---|---|
| Full scale flow rate 0 - 20 | 0 - 20 | slm | |
| Typical accuracy ±3% m.v. | ±3% m.v. | ||
| Calibration Air and N₂ | Air and N₂ | ||
| Sensor output Flow and T | Flow and T | ||
| Maximum operating pressure 6 | 6 | bar | |
| Fluidic connector ports Legris carstick (6 mm) | Legris carstick (6 mm) |
| Generic | |||
|---|---|---|---|
| Supply voltage 3.5 - 9 | 3.5 - 9 | V | |
| Max. supply current 12500 | 12500 | uA | |
| Interfaces I²C | I²C | ||
| Size (LxWxH) 93 x 31.88 x 27.2 | 93 x 31.88 x 27.2 | mm |
Downloads

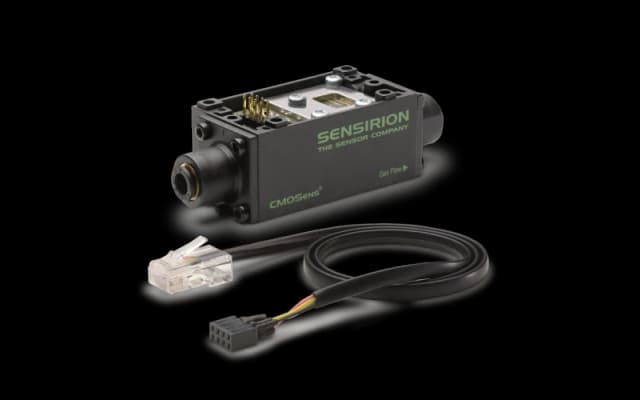

Sensor evaluation
