SFM3019
Digital flow sensor for high-volume respiratory devices, 240 slm
The SFM3019 is a digital flow meter especially suitable for high-volume applications. The design of the flow channel results in very low pressure drop through the sensor element, making it highly suitable for medical ventilation. It is designed to meet the instantly increased demand for respiratory applications. The flow of air and oxygen at rates from -10slm to 240slm is measured with excellent accuracy and extremely high speed. It outputs a 16-bit digital signal at a 2kHz update rate. The signal is internally linearized and temperature compensated. Furthermore, the SFM3019 flow meter operates from a 3.3V to 5 Vdc supply voltage and features a digital two-wire interface, making it easy to connect directly to a microcontroller. As part of the SFM3xxx platform, the SFM3019 is the suitable choice for inspiratory flow measurements for high-volume applications in which cost efficiency is the priority.The outstanding performance of the SFM3019 sensor is based on Sensirion's patented CMOSens® Technology, which combines the sensor element, signal processing and digital calibration on a tiny microchip. The gas is measured by a thermal sensor element to provide an extended dynamic range and enhanced long-term stability compared to other flow measuring technologies. Thanks to this proven CMOSens® Technology, the flow meter is perfectly suited for high-quality mass production and is the ideal choice for demanding and cost-sensitive OEM applications.
Specification
| Gas flow | |||
|---|---|---|---|
| Full scale flow rate
-10 - 240
| -10 - 240 | slm | |
| Typical accuracy
±2% m.v.
| ±2% m.v. | ||
| Calibration
Air, O₂ and mixtures thereof
| Air, O₂ and mixtures thereof | ||
| Sensor output
Flow and T
| Flow and T | ||
| Maximum operating pressure
1.3
| 1.3 | bar | |
| Fluidic connector ports
Medical cone (22 mm)
| Medical cone (22 mm) |
| Generic | |||
|---|---|---|---|
| Supply voltage
2.7 - 5.5
| 2.7 - 5.5 | V | |
| Average supply current
3800
| 3800 | uA | |
| Max. supply current
5500
| 5500 | uA | |
| Interfaces
I²C
| I²C | ||
| Size (LxWxH)
82 x 35 x 32
| 82 x 35 x 32 | mm³ |
Downloads
Sensor evaluation
Buy the following products to evaluate this sensor
| Name | Description | Series | Category |
|---|---|---|---|
 SEK-SensorBridge | Connecting bridge with two sensor ports | SEK-SensorBridge | |

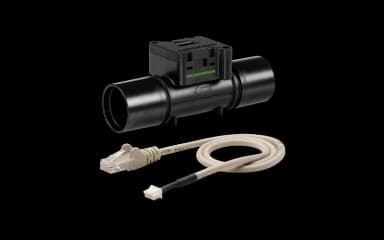

 SEK-SFM3019 | Gas flow sensors evaluation kit SFM3019 | SEK-SFMxxxx | Gas flow sensors |
Download the respective viewer software to start measuring
Go to download centerStart testing our sensors fast and easy with the evaluation kits
