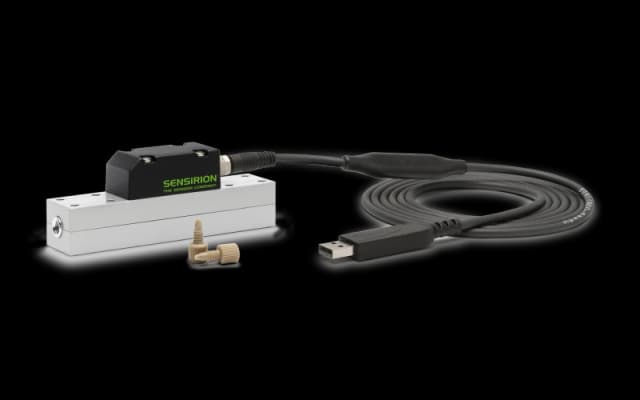

SLG-0150

Ultra-low flow rates and UHPLC applications up to 8 µl/min

Contact sales

Specification

Liquid flow
Full scale flow rate (H2O)
8
8 ul/min
Accuracy (H2O)
5
5 %
Repeatability (H2O)
0.5
0.5 %
Maximum operating pressure
500
500 bar
Fluidic connector ports
10-32 coned port
10-32 coned port
Generic
Supply voltage
4 - 6
4 - 6 V
Average supply current
5.1
5.1 mA
Max. supply current
6
6 mA
Interfaces
Analog voltage, Analog current, I²C, RS485
Analog voltage,Analog current,I²C,RS485
Size (LxWxH)
80 x 30 x 20
80 x 30 x 20 mm³

Downloads

Name Type Date File Size
Datasheet SCC1-USB, SCC1-RS485 sensor cable

10/2023

File

224.3 KB

Datasheet 10/2023 PDF 224.3 KB
Chemical resistance

07/2020

File

134.7 KB

Application note 07/2020 PDF 134.7 KB
Implementation Guide to the I²C Protocol

02/2022

File

1.2 MB

Application note 02/2022 PDF 1.2 MB
SSC1-USB-RS485 cable firmware update

03/2024

File

245.3 KB

Application note 03/2024 PDF 245.3 KB
SCC1-RS485 configurator (V. 1.8)

10/2021

File

2.2 MB

Software 10/2021 MSI 2.2 MB
SCC1-RS485 firmware (V. 1.8)

03/2024

File

166.7 KB

Software 03/2024 HEX 166.7 KB
Datasheet sensor cable SCC1-Analog

10/2017

File

616.1 KB

Datasheet 10/2017 PDF 616.1 KB
Datasheet sensor cable SCC1-Current

10/2017

File

581.4 KB

Datasheet 10/2017 PDF 581.4 KB
Datasheet SLG

03/2019

File

418.6 KB

Datasheet 03/2019 PDF 418.6 KB
Operating guidelines liquid flow meter kits (SLx and LPG10)

09/2020

File

671.7 KB

Application note 09/2020 PDF 671.7 KB
Sensor fluidic ports and tubing connections

01/2024

File

531.4 KB

Application note 01/2024 PDF 531.4 KB
SCC1-Analog configurator

10/2021

File

3.6 MB

Software 10/2021 MSI 3.6 MB
STEP file SLG

03/2024

File

3.6 MB

Drawings/CAD 03/2024 STEP 3.6 MB
REACH and RoHS declaration Liquid Flow Meters

11/2024

File

110.8 KB

Certificate 11/2024 PDF 110.8 KB
Table overview SLx

04/2019

File

182.6 KB

Flyer 04/2019 PDF 182.6 KB

Accessories

Name Description Series Category
SCC1-Analog
Adapter cable for liquid flow sensors, analog voltage output, 2m SCC1 Liquid flow
SCC1-Current
Adapter cable for liquid flow sensors, analog current output, 5m SCC1 Liquid flow
SCC1-RS485
Adapter cable for liquid flow sensors, RS485 interface, 2m SCC1 Liquid flow
SCC1-USB
Adapter cable for liquid flow sensors, USB interface, 2m SCC1 Liquid flow

Sensor evaluation

Buy the following products to evaluate this sensor

Name Description Series Category
EK-SLG-0150
Liquid flow evaluation kit SLI-0150 EK-SLx Liquid flow
