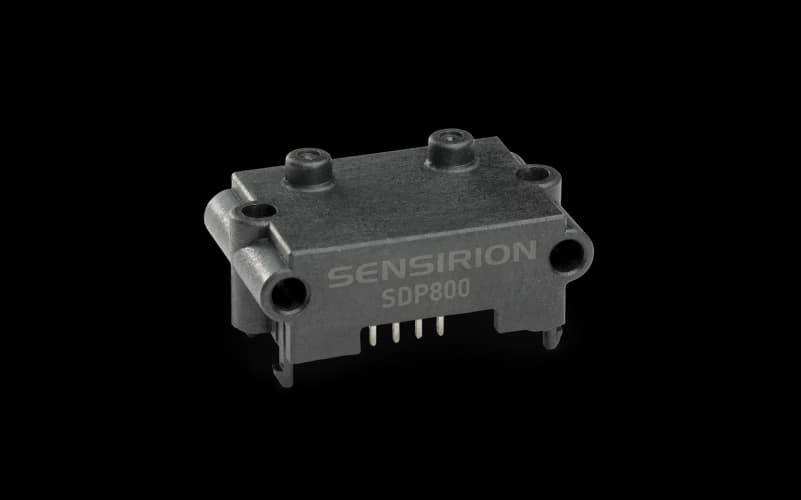

SDP806-500Pa

Analog DP sensor (±500 Pa), manifold connection

Distributor list Contact sales

Specification

Differential pressure
Pressure range
500 - 500
500 - 500 Pa
Accuracy
3
3 % m.v.
Zero point accuracy
0.1
0.1 Pa
Generic
Supply voltage
2.7 - 5.5
2.7 - 5.5 V
Average supply current
3800
3800 uA
Max. supply current
5500
5500 uA
Interfaces
Analog voltage
Analog voltage
Size (LxWxH)
29 x 18 x 17.55
29 x 18 x 17.55 mm³

Downloads

Name Type Date File Size
Datasheet SDP800 series analog

06/2024

File

697.2 KB

Datasheet 06/2024 PDF 697.2 KB
Arduino I²C SDP library

10/2021

Link

-

Software 10/2021 Link -
Sample code SDP800 series

10/2021

File

329.0 KB

Software 10/2021 ZIP 329.0 KB
STEP file SDP800

01/2023

File

2.1 MB

Drawings/CAD 01/2023 STEP 2.1 MB
Datasheet SDP8xx/6xx/5xx Series Cap

01/2022

File

182.7 KB

Datasheet 01/2022 PDF 182.7 KB
Efficient Gas Flow Measurements in Bypass

05/2023

File

211.4 KB

Application note 05/2023 PDF 211.4 KB
Handling instructions SDP800

01/2017

File

83.8 KB

Application note 01/2017 PDF 83.8 KB
SDP Engineering Guide

06/2024

File

1.0 MB

Guide 06/2024 PDF 1.0 MB
SDP Measurement Parameters

06/2024

File

381.1 KB

Guide 06/2024 PDF 381.1 KB
SDP Selection Guide

06/2024

File

318.0 KB

Guide 06/2024 PDF 318.0 KB
SDP Signal Compensation

06/2024

File

350.4 KB

Guide 06/2024 PDF 350.4 KB
Calibration certification SDP8xx series

04/2018

File

184.0 KB

Certificate 04/2018 PDF 184.0 KB
Differential pressure brochure chinese

06/2024

File

1.5 MB

Flyer 06/2024 PDF 1.5 MB
Differential pressure brochure english

05/2024

File

1.3 MB

Flyer 05/2024 PDF 1.3 MB
Differential pressure brochure japanese

06/2024

File

1.8 MB

Flyer 06/2024 PDF 1.8 MB

Accessories

Name Description Series Category
SDPxxx cap
Cap for all DP sensors of the SDP600 and SDP8xx series SDPxxx cap Differential pressure

Latest Differential pressure sensors

Active

SDP31

Digital differential pressure sensor (±500 Pa)

  • Sensor
  • Differential pressure
Active

SDP32

Digital differential pressure sensor (±125 Pa)

  • Sensor
  • Differential pressure
Active

SDP33

Digital differential pressure sensor (±1500 Pa)

  • Sensor
  • Differential pressure
Active

SDP36

Analog differential pressure sensor (±500 Pa)

  • Sensor
  • Differential pressure
Active

SDP37

Analog differential pressure sensor (±125 Pa)

  • Sensor
  • Differential pressure
Active

SEK-SDP31

Differential pressure evaluation kit SDP31

  • Evaluation kit
  • Differential pressure
Active

SDP810-500Pa

Digital DP sensor (±500 Pa), tube connection

  • Sensor
  • Differential pressure
