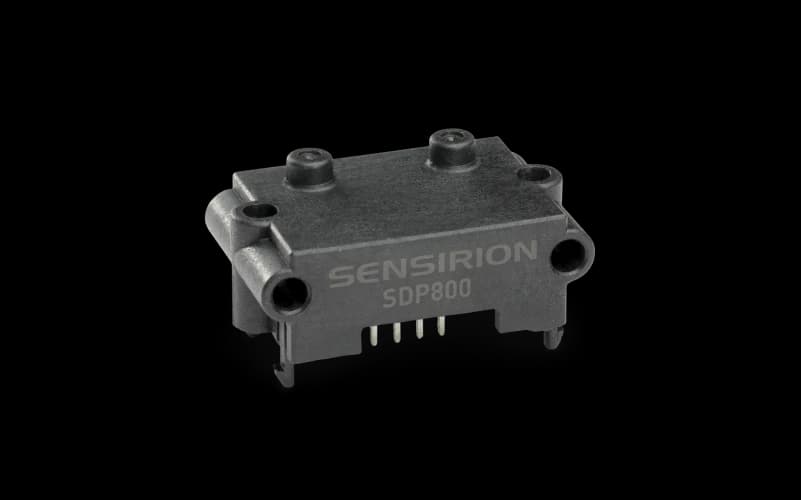

SDP806-125Pa

Analog DP sensor (±125 Pa), manifold connection

Specification

Differential pressure
Accuracy
3
3 % m.v.
Pressure range
±125
±125 Pa
Zero point accuracy
0.08
0.08 Pa
Calibration
Air and N₂
Air and N₂
Generic
Supply voltage
2.7 - 5.5
2.7 - 5.5 V
Average supply current
3800
3800 uA
Max. supply current
5500
5500 uA
Interfaces
Analog voltage
Analog voltage
Size (LxWxH)
29 x 18 x 17.55
29 x 18 x 17.55 mm³

Downloads

Name Type Date File Size
Datasheet SDP800 series analog

06/2024

File

697.2 KB

Datasheet 06/2024 PDF 697.2 KB
Arduino I²C SDP library

10/2021

Link

-

Software 10/2021 Link -
Sample code SDP800 series

10/2021

File

329.0 KB

Software 10/2021 ZIP 329.0 KB
STEP file SDP800

01/2023

File

2.1 MB

Drawings/CAD 01/2023 STEP 2.1 MB
Datasheet SDP8xx/6xx/5xx Series Cap

01/2022

File

182.7 KB

Datasheet 01/2022 PDF 182.7 KB
Efficient Gas Flow Measurements in Bypass

05/2023

File

211.4 KB

Application note 05/2023 PDF 211.4 KB
Handling instructions SDP800

01/2017

File

83.8 KB

Application note 01/2017 PDF 83.8 KB
SDP Engineering Guide

06/2024

File

1.0 MB

Guide 06/2024 PDF 1.0 MB
SDP Measurement Parameters

06/2024

File

381.1 KB

Guide 06/2024 PDF 381.1 KB
SDP Selection Guide

06/2024

File

318.0 KB

Guide 06/2024 PDF 318.0 KB
SDP Signal Compensation

06/2024

File

350.4 KB

Guide 06/2024 PDF 350.4 KB
Calibration certification SDP8xx series

04/2018

File

184.0 KB

Certificate 04/2018 PDF 184.0 KB
Differential pressure brochure chinese

06/2024

File

1.5 MB

Flyer 06/2024 PDF 1.5 MB
Differential pressure brochure english

05/2024

File

1.3 MB

Flyer 05/2024 PDF 1.3 MB
Differential pressure brochure japanese

06/2024

File

1.8 MB

Flyer 06/2024 PDF 1.8 MB
