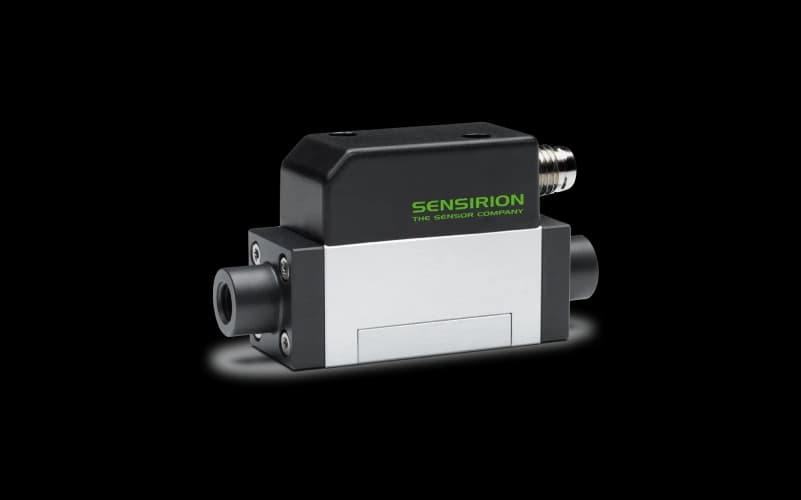

SLS-1500
Versatile and robust sensor for standalone laboratory setups
Featuring Sensirion’s innovative sensor technology in a robust and compact housing, the SLS-1500 offers a versatile sensing solution for applications in demanding industrial environments and laboratory settings. Sensirion’s modular approach, which allows the liquid flow meter to be combined with several interface cables, ensures an optimal match and simplifies the integration of a liquid flow meter into a fluidic system. Capable of fast and precise measurements for flow rates of up to 40 ml/min, the SLS 1500 enables close process monitoring. With a typical response time of 20 ms, it measures highly dynamic dispensing processes quickly and reliably. The flow channel inside the liquid flow meter is completely straight, open and has no moving parts. Inert, wetted materials (904L high-performance stainless steel, PEEK, and PTFE) provide outstanding chemical resistance and excellent media compatibility.
Specification
| Liquid flow | |||
|---|---|---|---|
| Full scale flow rate (H2O)
40
| 40 | ml/min | |
| Accuracy (H2O)
5
| 5 | % | |
| Repeatability (H2O)
0.5
| 0.5 | % | |
| Maximum operating pressure
12
| 12 | bar | |
| Fluidic connector ports
1/4-28 flat bottom
| 1/4-28 flat bottom |
| Generic | |||
|---|---|---|---|
| Supply voltage
4 - 6
| 4 - 6 | V | |
| Average supply current
5.1
| 5.1 | mA | |
| Max. supply current
6.5
| 6.5 | mA | |
| Interfaces
Analog voltage, Analog current, I²C, RS485
| Analog voltage,Analog current,I²C,RS485 | ||
| Size (LxWxH)
59 x 31.5 x 18
| 59 x 31.5 x 18 | mm³ |
Downloads
Accessories
| Name | Description | Series | Category |
|---|---|---|---|
 SCC1-Analog | Adapter cable for liquid flow sensors, analog voltage output, 2m | SCC1 | Liquid flow |
| SCC1-Current | Adapter cable for liquid flow sensors, analog current output, 5m | SCC1 | Liquid flow |
| SCC1-RS485 | Adapter cable for liquid flow sensors, RS485 interface, 2m | SCC1 | Liquid flow |
 SCC1-USB | Adapter cable for liquid flow sensors, USB interface, 2m | SCC1 | Liquid flow |
SCC1-Analog
Adapter cable for liquid flow sensors, analog voltage output, 2m
SCC1
Liquid flow SCC1-Current
Adapter cable for liquid flow sensors, analog current output, 5m
SCC1
Liquid flow SCC1-RS485
Adapter cable for liquid flow sensors, RS485 interface, 2m
SCC1
Liquid flow SCC1-USB
Adapter cable for liquid flow sensors, USB interface, 2m
SCC1
Liquid flowSensor evaluation
Buy the following products to evaluate this sensor
| Name | Description | Series | Category |
|---|---|---|---|
 EK-SLS-1500 | Liquid flow evaluation kit SLS-1500 | EK-SLx | Liquid flow |
