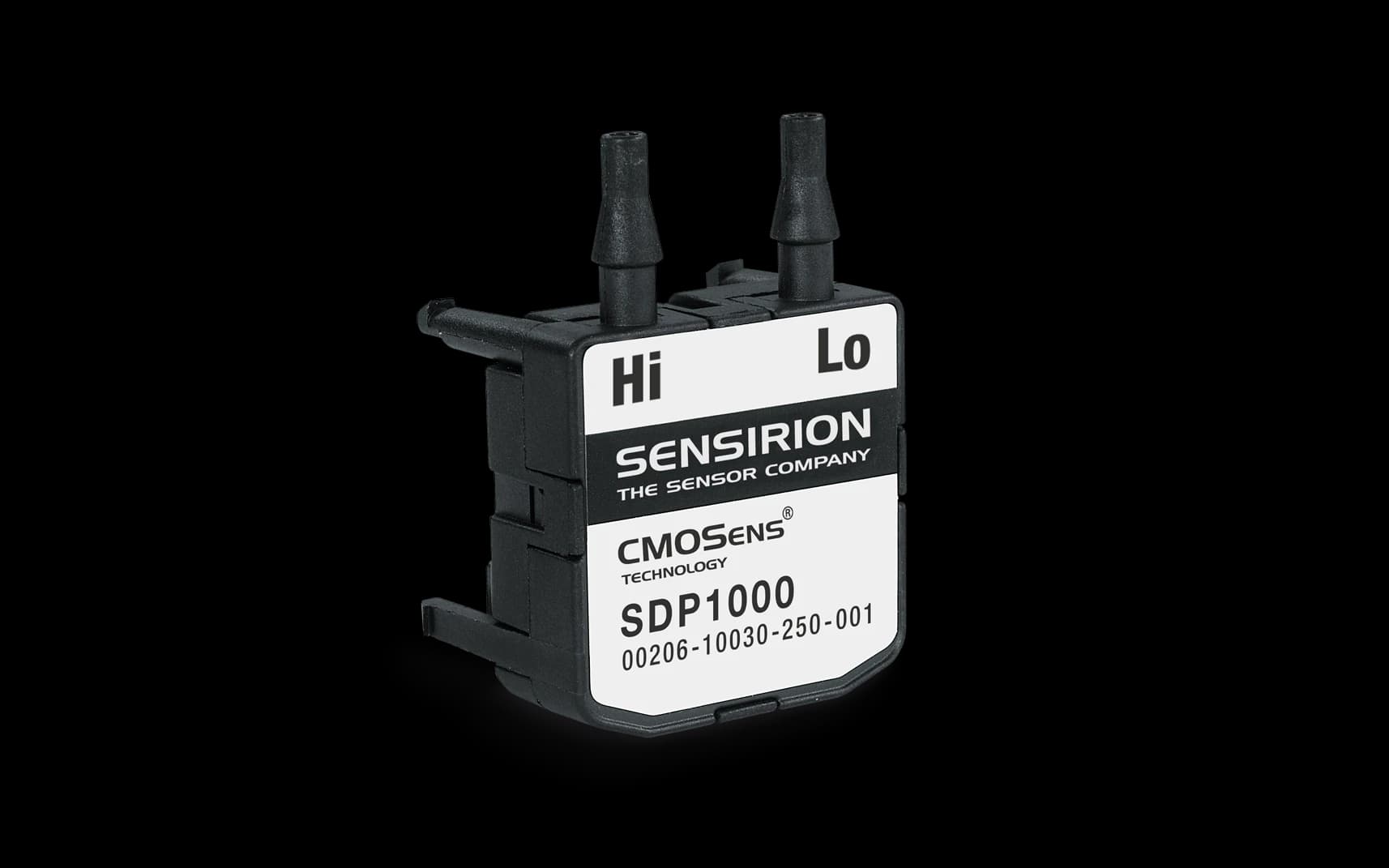

SDP1000-L
NRNDAnalog differential pressure sensor (-20 – 500 Pa)
The SDP1000 family of low differential pressure sensors provides precise differential pressure measurement with an analog 0 to 4 voltage output. The fully calibrated and temperature compensated sensors feature high long-term stability and measure even miniscule pressure differences below 0.25 Pa (0.001 inch water). High performance and simple operation help minimize design effort. Several ranges from ±62 Pa to 0-3500 Pa (14 inch water) are available. The SDP1000 series is an ideal choice for demanding applications, for example medical and HVAC systems.
Successor product
| Name | Description | Series | Category |
|---|---|---|---|

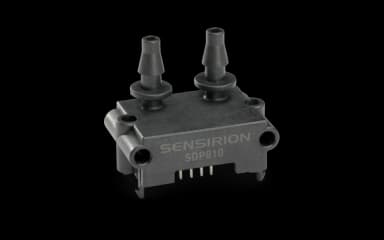

 SDP816-500Pa | Analog DP sensor (±500 Pa), tube connection | SDP8xx | Differential pressure |
Specification
| Differential pressure | |||
|---|---|---|---|
| Pressure range
-20 - 500
| -20 - 500 | Pa | |
| Accuracy
1.5
| 1.5 | % m.v. |
| Generic | |||
|---|---|---|---|
| Supply voltage
4.75 - 5.25
| 4.75 - 5.25 | V | |
| Average supply current
4300
| 4300 | uA | |
| Max. supply current
5200
| 5200 | uA | |
| Size (LxWxH)
44 x 30 x 22.1
| 44 x 30 x 22.1 | mm³ |
