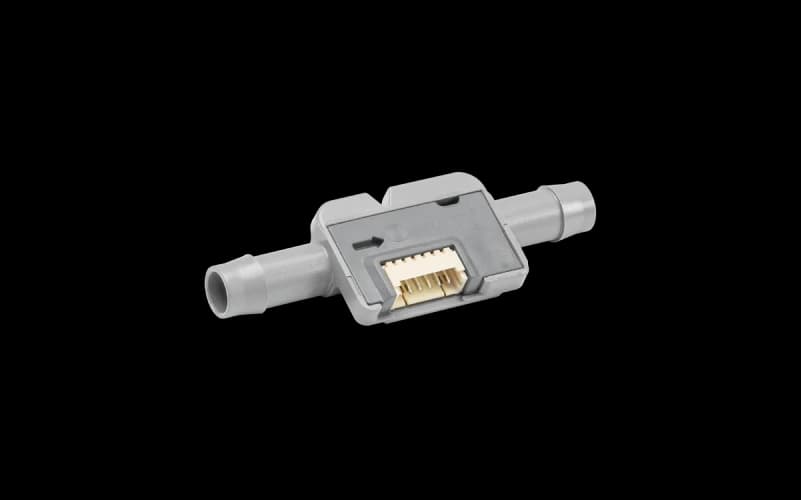

SLF3S-4000B
Liquid flow sensing on a new level: flow rates up to 600 ml/min
<p>With the new SLF3S-4000B high-flow sensor, Sensirion is moving into a new measurement dimension and now covers an extended measurement range from nanoliters to liters per minute. With the same look and feel as the existing SLF3x flow sensor family, the SLF3S-4000B offers several advantages. Users can continue to use existing cables or software for readout without customization, thus eliminating reprogramming processes. The complete liquid flow sensor portfolio benefits users who want to source their sensor technology from one specialist in automation solutions and fluid systems.</p>
Specification
| Liquid flow | |||
|---|---|---|---|
| Full scale flow rate (H2O)
600
| 600 | ml/min | |
| Accuracy (H2O)
5
| 5 | % | |
| Repeatability (H2O)
0.5
| 0.5 | % | |
| Full scale flow rate (IPA)
600
| 600 | ml/min | |
| Accuracy (IPA)
10
| 10 | % | |
| Repeatability (IPA)
0.5
| 0.5 | % | |
| Maximum operating pressure
3
| 3 | bar | |
| Fluidic connector ports
Barbed fittings
| Barbed fittings |
| Generic | |||
|---|---|---|---|
| Supply voltage
3.2 - 3.8
| 3.2 - 3.8 | V | |
| Max. supply current
6
| 6 | mA | |
| Interfaces
I²C, RS485
| I²C,RS485 | ||
| Size (LxWxH)
48 x 15.5 x 8.6
| 48 x 15.5 x 8.6 | mm³ |
Downloads
Sensor evaluation
Buy the following products to evaluate this sensor
| Name | Description | Series | Category |
|---|---|---|---|

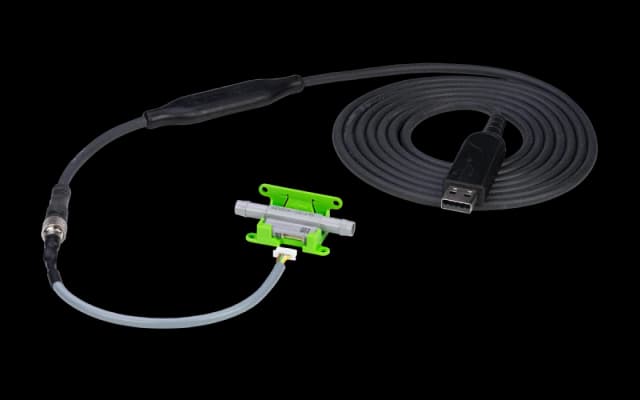

 EK-SLF3S-4000B | Liquid flow evaluation kit SLF3S-4000B | SLF3x | Liquid flow |
Download the respective viewer software to start measuring
Go to download centerStart testing our sensors fast and easy with the evaluation kits
