SGPC3

Obsolete

Low power VOC sensor

The SGPxx is a digital multi-pixel gas sensor platform designed for easy integration into air purifier, demand-controlled ventilation, and IoT applications.

The SGP30 has been designed for smart home, appliance and Internet of Things applications. It features two calibrated air quality signals and on-chip humidity compensation. In addition, with the SGPC3, Sensirion offers a low power solution that makes reliable gas sensing available for mobile applications.

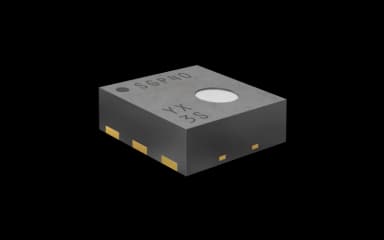

Sensirion’s CMOSens® Technology offers a complete sensor system on a single chip featuring a digital I²C interface, a temperature controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP3x provides more detailed information about the air quality. The sensing element features an unmatched robustness against contaminating gases present in real-world applications enabling a unique long-term stability and low drift. The very small 2.45 x 2.45 x 0.9 mm³ DFN package enables applications in limited spaces. Sensirion’s state-of-the-art production process guarantees high reproducibility and reliability. Tape and reel packaging, together with suitability for standard SMD assembly processes make the SGP30 predestined for high-volume applications.

Successor product

Name Description Series Category
SGP40
VOC sensor for indoor air quality applications SGP4x VOC

Specification

VOC
Sensor output
Digital 16-bit raw signal
Digital 16-bit raw signal
Processed output
Total VOC in ppb
Total VOC in ppb
Measurement range
0 - 1000
0 - 1000 ppm
Device-to-device var.
15 - 25
15 - 25 %
Switch-on time
24
24 h
On-chip humidity compensation
Yes
Yes
Generic
Supply voltage
1.62 - 1.98
1.62 - 1.98 V
Average supply current
1000
1000 uA
Interfaces
I²C
I²C
Size (LxWxH)
2.45 x 2.45 x 0.9
2.45 x 2.45 x 0.9 mm

Downloads

Name Type Date File Size
Datasheet SGPC3 (end of life)

05/2020

File

1.3 MB

Datasheet 05/2020 PDF 1.3 MB
SEK-ControlCenter (all devices)

10/2021

Link

-

Software 10/2021 Link -
REACH and RoHS declaration SGP

01/2025

File

100.5 KB

Certificate 01/2025 PDF 100.5 KB
