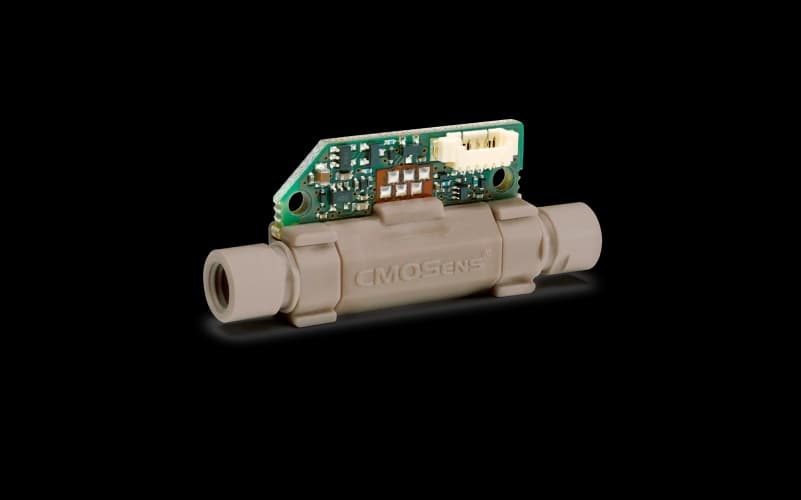

LG16-1000D

Compact liquid flow sensor for OEM applications up to 1 ml/min

Distributor list Contact sales

Specification

Liquid flow
Full scale flow rate (H2O)
1
1 ml/min
Accuracy (H2O)
5
5 %
Repeatability (H2O)
0.5
0.5 %
Full scale flow rate (IPA)
10
10 ml/min
Accuracy (IPA)
20
20 %
Repeatability (IPA)
1
1 %
Maximum operating pressure
15
15 bar
Fluidic connector ports
1/4-28 flat bottom
1/4-28 flat bottom
Generic
Supply voltage
4 - 12
4 - 12 V
Average supply current
6.8
6.8 mA
Max. supply current
6.8
6.8 mA
Interfaces
Analog voltage, Analog current, I²C, RS485
Analog voltage,Analog current,I²C,RS485
Size (LxWxH)
53 x 22 x 9
53 x 22 x 9 mm³

Downloads

Name Type Date File Size
Datasheet LG16 digital

01/2020

File

655.7 KB

Datasheet 01/2020 PDF 655.7 KB
STEP file LG16 (0431, 1000, 2000)

10/2021

File

3.8 MB

Drawings/CAD 10/2021 STEP 3.8 MB
Datasheet sensor cable SCC1-Analog

10/2017

File

616.1 KB

Datasheet 10/2017 PDF 616.1 KB
Datasheet sensor cable SCC1-Current

10/2017

File

581.4 KB

Datasheet 10/2017 PDF 581.4 KB
Implementation Guide to the I²C Protocol

02/2022

File

1.2 MB

Application note 02/2022 PDF 1.2 MB
Installation Advice LG16

10/2024

File

61.6 KB

Application note 10/2024 PDF 61.6 KB
Sensor fluidic ports and tubing connections

01/2024

File

531.4 KB

Application note 01/2024 PDF 531.4 KB
SCC1-Analog configurator

10/2021

File

3.6 MB

Software 10/2021 MSI 3.6 MB
Calibration certification LG16

08/2011

File

98.4 KB

Certificate 08/2011 PDF 98.4 KB
REACH and RoHS declaration Liquid Flow Meters

11/2024

File

110.8 KB

Certificate 11/2024 PDF 110.8 KB
Table overview Lx

07/2019

File

167.1 KB

Flyer 07/2019 PDF 167.1 KB
