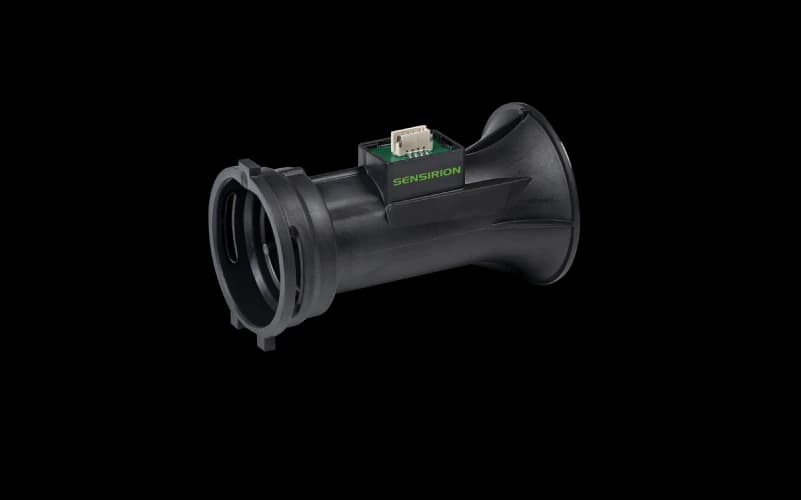

SGM6400
UpcomingGas metering natural gas/high CO₂ biomethane/LNG/blends & pure H₂
The SGM64xx are the next generation gas meter modules, ready for the hydrogen future. Each module achieves MID accuracy with natural gas, LNG, biomethane, hydrogen blends and pure hydrogen. The maximum flow range for hydrogen is over 3x higher than that for natural gas. This means, no meter replacement is needed when natural gas in the network is gradually replaced with hydrogen.
Specification
| Gas metering | |||
|---|---|---|---|
| Meter class
1.5
| 1.5 | ||
| Gas type
Natural gas + up to 23% H2, pure H2
| Natural gas + up to 23% H2, pure H2 | ||
| Flow range
G1.6/G2.5/G4/G6/G10/G16/G25
| G1.6/G2.5/G4/G6/G10/G16/G25 |
| Generic | |||
|---|---|---|---|
| Supply voltage
2.7 - 3.6
| 2.7 - 3.6 | V | |
| Max. supply current
15
| 15 | uA | |
| Interfaces
I²C
| I²C | ||
| Size (LxWxH)
76.7 x 44.6 x 40
| 76.7 x 44.6 x 40 | mm³ |
