SF2 filter cap

Filter cap for SHT2x to SHT4x humidity and temperature sensors

Specification

Generic
Packaging size
100
pcs (Tray)

Technical downloads

Name
Type
Date
File
Size
Datasheet filter cap SF2
Datasheet
04/2021
PDF
181.2 KB
Handling and assembly of SF2 filter cap
Application note
12/2011
PDF
181.2 KB
STEP file filter cap SF2
CAD
10/2021
ZIP
33.1 KB
Conditions of thermal comfort
Application note
02/2010
PDF
63.0 KB
ESD, Latch-up and EMC
Application note
03/2009
PDF
148.9 KB
How to understand specification of relative humidity sensors
Application note
04/2021
PDF
306.8 KB
Humidity at a glance
Application note
06/2021
PDF
178.3 KB
Introduction to humidity
Application note
08/2009
PDF
224.9 KB
Design-in guide SHT/STS
User guide
05/2019
PDF
458.7 KB
Handling instructions SHT
User guide
06/2021
PDF
313.4 KB
REACH and RoHS declaration SHT/STS
Certificate
07/2022
PDF
93.7 KB
Humidity sensors brochure
Flyer
01/2022
PDF
936.7 KB
Indoor air quality brochure
Flyer
10/2021
PDF
7.7 MB

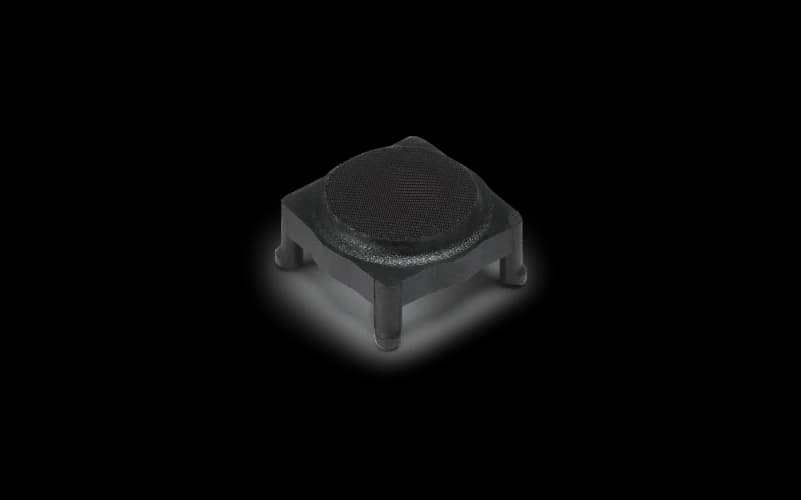

Easily mountable solution to protect SHT2x/3x/4x, SHTC1 and SHTC3 humidity sensors. The SF2 filter cap protects against water, dust, soot, particles and other contaminants. It consists of a single piece of PBT and an integrated water vapor-permeable filter membrane.

The cavity inside the cap is designed so that the dead volume between membrane and sensor is negligible; hence the impact on response time for humidity measurements is reduced to a minimum. The cap is available in black with a black filter membrane.

The cap is made of a single piece of polybutylene terephthalate (PBT) with a filter membrane welded on. The cap is designed to be mounted after soldering by clipping the four pins on to the PCB. Together with the sensor, it provides a compact entity that can serve as an adaptor to the device housing. With the addition of adhesive for sealing to the PCB and use of an o-ring, it provides a waterproof mounting solution.
