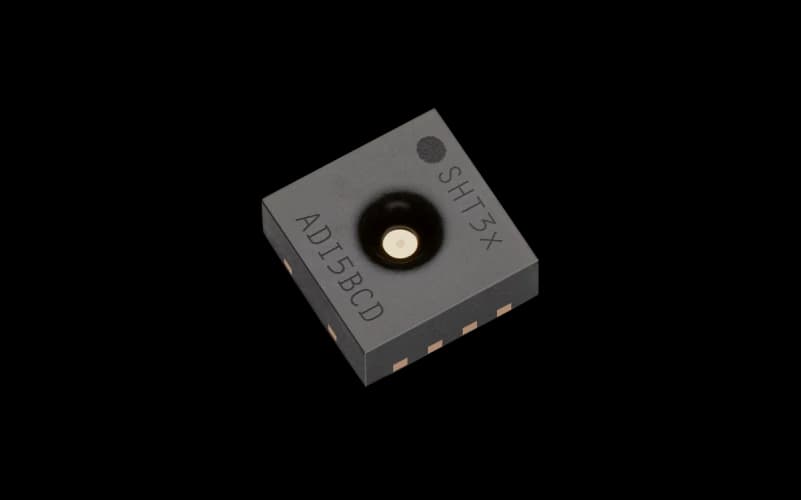

SHT31-DIS-B

±2% (0-100%RH) Digital humidity and temperature sensor

Specification

Humidity
Typ. relative humidity accuracy
2
2 %RH
Operating relative humidity range
0 - 100
0 - 100 %RH
Response time (τ63%)
8
8 s
Calibration certificate
Factory calibration
Factory calibration
Temperature
Typ. temperature accuracy
0.2
0.2 °C
Operating temperature range
-40 - 125
-40 - 125 °C
Response time (τ63%)
> 2
> 2 s
Generic
Supply voltage
2.4 - 5.5
2.4 - 5.5 V
Average supply current
1.7
1.7 uA
Max. supply current
1500
1500 uA
Interfaces
I²C
I²C
Size (LxWxH)
2.5 x 2.5 x 0.9
2.5 x 2.5 x 0.9 mm³
Packaging size
2500, 10000
2500, 10000 pcs (T&R)
