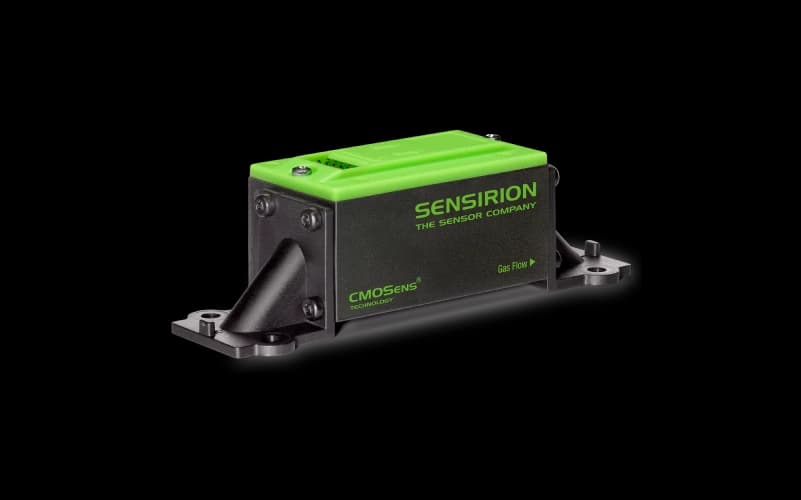

SFM4100-20-N2O-B

NRND

Pressure-resistant flow sensor for N₂O, 20slm, basemount

Successor product

Name Description Series Category
SFM4300-20-B
Pressure-resistant flow sensor, multi-gas, 20slm, basemount SFM4xxx Gas flow sensors

Specification

Gas flow
Full scale flow rate
0 - 20
0 - 20 slm
Typical accuracy
±3% m.v.
±3% m.v.
Calibration
N₂O
N₂O
Sensor output
Flow and T
Flow and T
Maximum operating pressure
6
6 bar
Fluidic connector ports
Downmount
Downmount
Generic
Supply voltage
3.5 - 10
3.5 - 10 V
Max. supply current
12500
12500 uA
Interfaces
I²C
I²C
Size (LxWxH)
93 x 31.88 x 27.2
93 x 31.88 x 27.2 mm³

Technical downloads

Name Type Date File Size
Datasheet SFM4100

01/2024

File

481.6 KB

Datasheet 01/2024 PDF 481.6 KB
CRC calculation SFM4100

06/2009

File

43.4 KB

Application note 06/2009 PDF 43.4 KB
Sample code note SFM4100

07/2009

File

103.0 KB

Application note 07/2009 PDF 103.0 KB
Sample code SFM4100

07/2009

File

103.0 KB

Software 07/2009 PDF 103.0 KB
STEP file SFM4100 (Downmount)

10/2021

File

3.7 MB

Drawings/CAD 10/2021 ZIP 3.7 MB
Calibration certification SFM4100

08/2010

File

18.8 KB

Certificate 08/2010 PDF 18.8 KB
Reference and flow conversions

09/2021

File

293.7 KB

Application note 09/2021 PDF 293.7 KB
Reference and flow conversions calculator

10/2021

File

30.3 KB

Application note 10/2021 XLSX 30.3 KB
Engineering guide SFM

01/2021

File

592.1 KB

Guide 01/2021 PDF 592.1 KB
SEK-ControlCenter (all devices)

10/2021

Link

-

Software 10/2021 Link -
Calibration certification gas flow sensors

01/2023

File

169.8 KB

Certificate 01/2023 PDF 169.8 KB
REACH and RoHS declaration SFM/SGM

02/2024

File

88.9 KB

Certificate 02/2024 PDF 88.9 KB
Mass flow controllers brochure chinese

06/2024

File

633.9 KB

Flyer 06/2024 PDF 633.9 KB
Overview of Sensirion gas flow meters

01/2024

File

1013.9 KB

Flyer 01/2024 PDF 1013.9 KB

Sensor evaluation

Buy the following products to evaluate this sensor

Name Description Series Category
SEK-SensorBridge
Connecting bridge with two sensor ports SEK-SensorBridge
SEK-SFM4100
Gas flow sensors evaluation kit SFM4100 SEK-SFMxxxx Gas flow sensors
