SFM3300-D

Proximal flow sensor for respiratory devices, single-use, 250 slm

Specification

Gas flow
Full scale flow rate
±250
slm
Typical accuracy
±3% m.v.
Calibration
AIR and O₂
Sensor output
Flow and T
Maximum operating pressure
1.1
bar
Fluidic connector ports
Medical cone (22 mm)
Generic
Supply voltage
4.75 - 5.5
V
Max. supply current
10000
μA
Interfaces
I²C
Package size (LxWxH)
69.3 x 25.3 x 22
mm³

Technical downloads

Name
Type
Date
File
Size
Datasheet SFM3300
Datasheet
01/2019
PDF
372.8 KB
Sample code SFM3000
Software
10/2021
ZIP
261.6 KB
STEP file SFM3300-D
CAD
10/2021
STEP
2.1 MB
Product flyer SFM proximal flow sensors
Flyer
04/2017
PDF
667.7 KB
Cleaning methods
Application note
01/2021
PDF
188.0 KB
Clip-on cap/cable evaluation kit
Application note
09/2021
PDF
483.3 KB
Connector Interface for SFM3x00-AW and SFM3x00-D Flow Sensors
Application note
12/2017
PDF
483.3 KB
CRC checksum
Application note
01/2020
PDF
174.3 KB
High humidity applications
Application note
01/2021
PDF
342.0 KB
I²C functional description
Application note
01/2021
PDF
263.9 KB
Reference and flow conversions
Application note
09/2021
PDF
293.7 KB
STEP file SFM cap for AW/D type sensors
CAD
10/2021
STEP
4.6 MB
Engineering guide SFM
User guide
01/2021
PDF
592.1 KB
REACH and RoHS declaration SFM/SGM
Certificate
09/2021
PDF
99.4 KB
Product flyer SFM
Flyer
08/2021
PDF
1013.9 KB

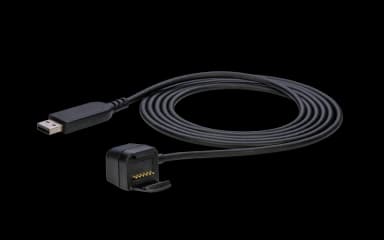

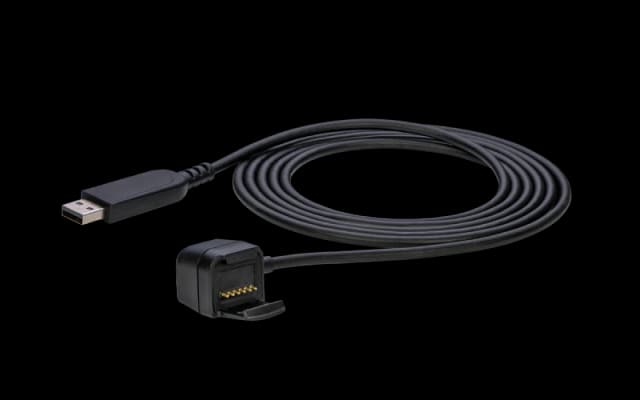

Buy the following product to evaluate this sensor

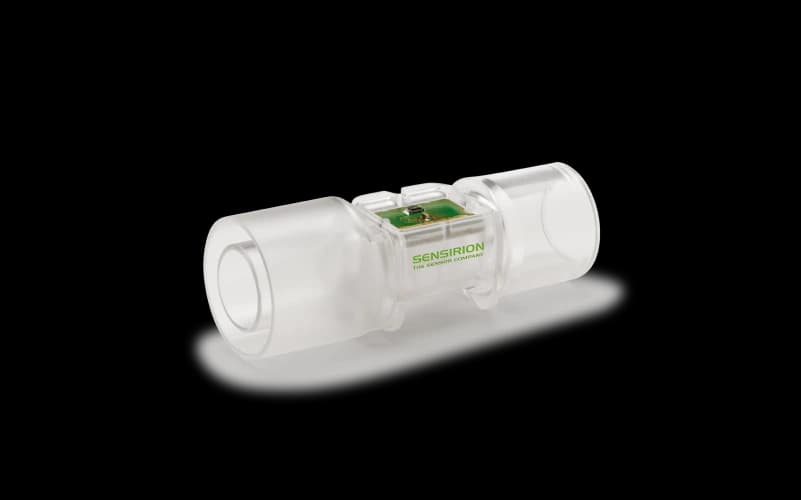

The SFM3300 mass flow meter is a sensor for proximal flow measurement in respiratory applications such as ventilation or anesthesia. There are two versions available: the SFM3300-AW is autoclavable and washable and the SFM3300-D is single-use.

The SFM3300 features outstanding measuring accuracy and robustness as well as a short signal processing time. The digital flow sensor measures bidirectional flow volumes of up to 250 slm and is fully calibrated for air, N2 and O2 gases. The special design of the flow channel results in a low dead space volume and the slightly greater pressure drop ensures more stability compared to variable inlet conditions. The sensor also features medical cones for pneumatic connection to the respiratory cycle and has a mechanical interface for a user-friendly electrical connection. Thanks to its performance characteristics, the SFM3300 mass flow meter is ideally suited for single-use proximal flow measurements in medical ventilation, hospital applications, residential care applications and emergency situations.

Like all Sensirion sensors, the SFM3300 is based on the innovative CMOSens® Technology, which combines the sensor element and processing electronics on a single, tiny CMOS microchip. The CMOSens® mass flow sensor offers durably stable and interference-free measurement and enables a very fast and highly precise sensor signal.
