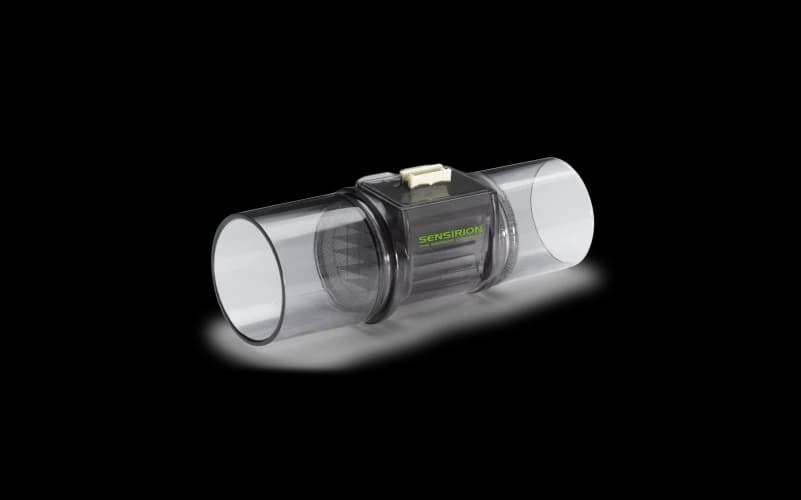

SFM3200

Flow sensor for inspiratory use in respiratory devices, 250 slm

Specification

Gas flow
Full scale flow rate
-100 - 250
slm
Typical accuracy
±2% m.v.
Calibration
Air and O₂
Sensor output
Flow and T
Maximum operating pressure
1.07
bar
Fluidic connector ports
Medical cone (22 mm)
Generic
Supply voltage
4.75 - 5.5
V
Max. supply current
10000
μA
Interfaces
I²C
Package size (LxWxH)
69.3 x 25.3 x 22
mm³

Technical downloads

Name
Type
Date
File
Size
Datasheet SFM3200
Datasheet
05/2017
PDF
323.6 KB
CRC checksum
Application note
01/2020
PDF
174.3 KB
I²C functional description
Application note
01/2021
PDF
263.9 KB
STEP file SFM3200
CAD
10/2021
STEP
3.4 MB
Handling instructions SFM3xxx
Application note
01/2021
PDF
141.7 KB
Reference and flow conversions
Application note
09/2021
PDF
614.1 KB
Reference and flow conversions calculator
Application note
10/2021
XLSX
30.3 KB
Sample code SFM3000
Software
10/2021
ZIP
261.6 KB
STEP file SFM3000
CAD
10/2021
STEP
2.2 MB
Product flyer medical applications SFM3000
Flyer
10/2021
PDF
183.1 KB
Engineering guide SFM
User guide
01/2021
PDF
592.1 KB
REACH and RoHS declaration SFM/SGM
Certificate
09/2021
PDF
31.2 KB
Product flyer SFM
Flyer
08/2021
PDF
4.6 MB

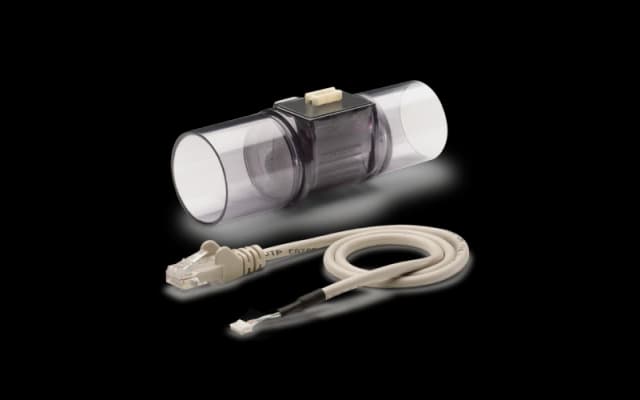

Buy the following products to evaluate this sensor

he SFM3200 mass flow meter is best suitable for inspiratory flow measurements. In addition, an autoclavable / washable version is avaialble (SFM3200-AW), which is able to withstand autoclave procedures, making it reusable and suitable for expiratory flow measurements.

The SFM3200 mass flow meter is characterized by its wide dynamic measurement range of up to 250 slm, as well as its measurement accuracy at low flows. The special design of the flow channel results in a very low pressure drop through the flow body of the sensor, which makes it extremely suitable for medical ventilation and other respiratory applications. The thermal sensor element assures very fast signal processing time and bidirectional measurement mode, with the signal being internally linearized and temperature compensated.

The outstanding performance of the SFM3200 sensor is based on Sensirion's patented CMOSens® Technology. The technology allows the integration of the sensor element and the analysis electronics on a single, tiny CMOS silicon chip. The result is a highly stable and precise system for demanding and cost-sensitive applications.

Product impressions

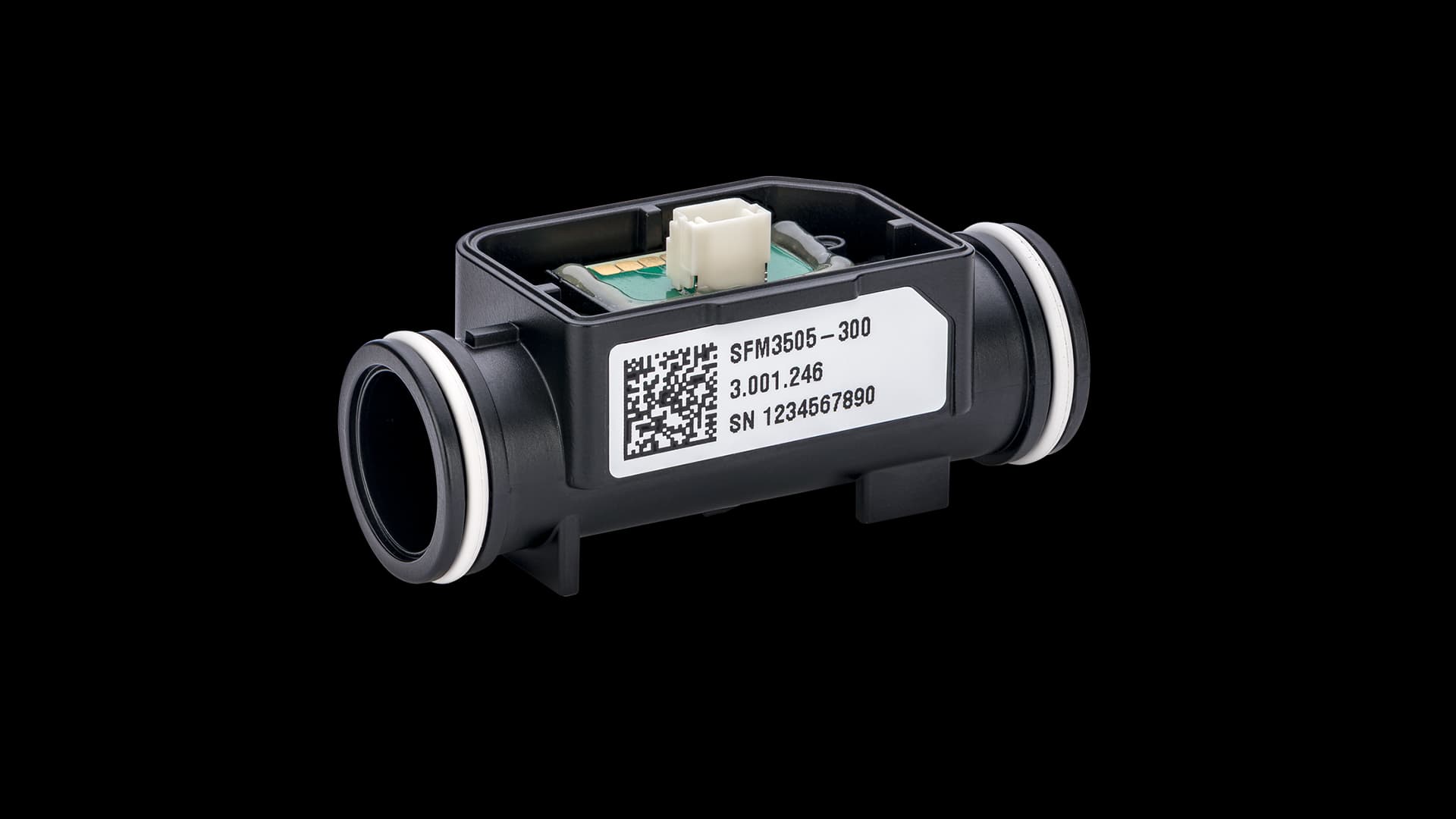

Latest gas flow sensors
