Specification

Liquid flow
Full scale flow rate (H2O)
5
5 ml/min
Accuracy (H2O)
5
5 %
Repeatability (H2O)
0.5
0.5 %
Full scale flow rate (IPA)
80
80 ml/min
Accuracy (IPA)
10
10 %
Repeatability (IPA)
1.5
1.5 %
Maximum operating pressure
15
15 bar
Fluidic connector ports
1/4-28 flat bottom
1/4-28 flat bottom
Generic
Supply voltage
4 - 6
4 - 6 V
Average supply current
68000
68000 uA
Max. supply current
68000
68000 uA
Interfaces
Analog voltage, Analog current, I²C, RS485
Analog voltage,Analog current,I²C,RS485
Size (LxWxH)
58 x 42.5 x 20
58 x 42.5 x 20 mm³

Technical downloads

Name Type Date File Size
Datasheet SCC1-USB, SCC1-RS485 sensor cable

10/2023

File

224.3 KB

Datasheet 10/2023 PDF 224.3 KB
Chemical resistance

07/2020

File

134.7 KB

Application note 07/2020 PDF 134.7 KB
SCC1-RS485 configurator (V. 1.8)

10/2021

File

2.2 MB

Software 10/2021 MSI 2.2 MB
Datasheet sensor cable SCC1-Analog

10/2017

File

616.1 KB

Datasheet 10/2017 PDF 616.1 KB
Datasheet sensor cable SCC1-Current

10/2017

File

581.4 KB

Datasheet 10/2017 PDF 581.4 KB
Datasheet SLI

01/2020

File

471.2 KB

Datasheet 01/2020 PDF 471.2 KB
Implementation Guide to the I²C Protocol

02/2022

File

1.2 MB

Application note 02/2022 PDF 1.2 MB
Operating guidelines liquid flow meter kits (SLx and LPG10)

09/2020

File

671.7 KB

Application note 09/2020 PDF 671.7 KB
Sensor fluidic ports and tubing connections

01/2024

File

531.4 KB

Application note 01/2024 PDF 531.4 KB
SCC1-Analog configurator

10/2021

File

3.6 MB

Software 10/2021 MSI 3.6 MB
STEP file SLI

10/2021

File

7.7 MB

CAD 10/2021 STEP 7.7 MB
Calibration Certification SLI

08/2023

File

233.9 KB

Certificate 08/2023 PDF 233.9 KB
REACH and RoHS declaration Liquid Flow Meters

02/2024

File

104.1 KB

Certificate 02/2024 PDF 104.1 KB
Table overview SLx

04/2019

File

182.6 KB

Flyer 04/2019 PDF 182.6 KB

Accessories

Name Description Series Category
SCC1-Analog
Adapter cable for liquid flow sensors, analog voltage output, 2m SCC1 Liquid flow
SCC1-Current
Adapter cable for liquid flow sensors, analog current output, 5m SCC1 Liquid flow
SCC1-RS485
Adapter cable for liquid flow sensors, RS485 interface, 2m SCC1 Liquid flow
SCC1-USB
Adapter cable for liquid flow sensors, USB interface, 2m SCC1 Liquid flow

Sensor evaluation

Buy the following products to evaluate this sensor

Name Description Series Category

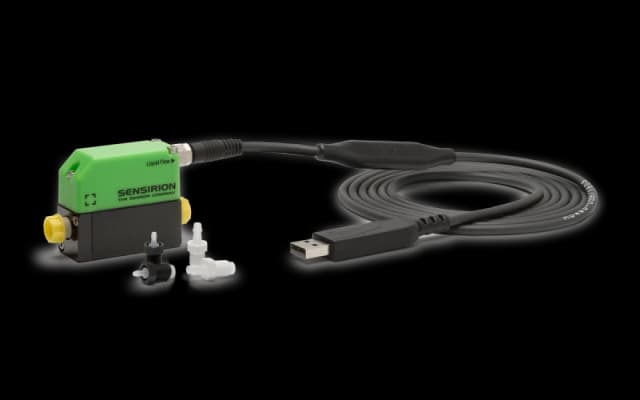

EK-SLI-2000
Liquid flow evaluation kit SLI-2000 EK-SLx Liquid flow
