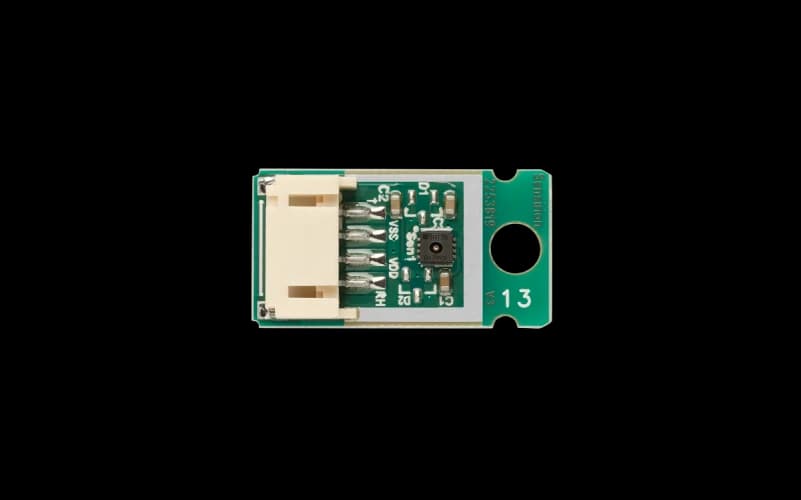

SCC30-DB

±3% Digital humidity and temperature sensor module

Specification

Humidity
Typ. relative humidity accuracy
3
%RH
Operating relative humidity range
0 - 100
%RH
Response time (τ63%)
8
s
Calibration certificate
Factory calibration
Temperature
Typ. temperature accuracy
0.3
°C
Operating temperature range
-40 - 125
°C
Generic
Supply voltage
2.4 - 5.5
V
Average supply current
2
μA
Max. supply current
1500
μA
Interfaces
I²C
Package size (LxWxH)
25.6 x 13.6 x 7.2
mm³

Technical downloads

Name
Type
Date
File
Size
Datasheet SCC30-DB
Datasheet
06/2020
PDF
834.4 KB
STEP file SCC30-DB
CAD
10/2021
ZIP
136.3 KB
REACH and RoHS declaration SVM30, SCC3x
Certificate
07/2021
PDF
125.3 KB
Conditions of thermal comfort
Application note
02/2010
PDF
63.0 KB
ESD, Latch-up and EMC
Application note
03/2009
PDF
148.9 KB
How to understand specification of relative humidity sensors
Application note
04/2021
PDF
306.8 KB
Humidity at a glance
Application note
06/2021
PDF
178.3 KB
Introduction to humidity
Application note
08/2009
PDF
224.9 KB
Handling instructions
User guide
06/2021
PDF
313.4 KB
How to design-in a humidity and temperature sensor
User guide
05/2019
PDF
458.7 KB
REACH, RoHS and Hal-free declaration SHT
Certificate
07/2021
PDF
86.7 KB
Indoor air quality brochure
Flyer
10/2021
PDF
6.7 MB
Product flyer SHT
Flyer
10/2018
PDF
4.5 MB

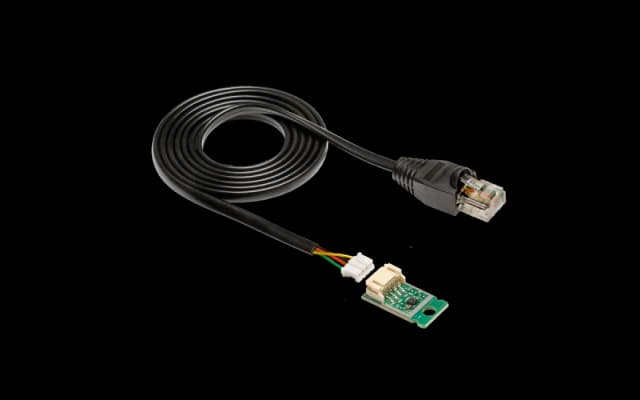

Buy the following products to evaluate this sensor

There are applications that require a humidity and temperature sensor to be located in a specific part of the device – often at a different location than the main control board, i.e. the sensor can not be assembled on the main board.

With the SCC30, customers can place a humidity and temperature sensor anywhere in a device and connect it to the main board with a cable without having to spend design resources for creating an own sensor module. Based on Sensirion’s experience and expertise in environmental sensing the SCC30 is optimized for easy design-in and sensing performance. The SCC30 offers superior sensor performance of capacitive type sensor elements and a very attractive price/performance ratio due to Sensirion’s latest generation of highly integrated humidity and temperature sensors SHT3x.

The module provides high reliability and excellent long-term stability, a broad supply voltage range of 2.4 to 5.5V and delivers fully calibrated and processed measurement values through an I²C interface. The compact design with connector and easy-to-use digital interface make the SCC30 a cost-effective and versatile plug & play solution for a wide range of applications.
