LS32-1500

Compact, chemically-resistant liquid flow sensor up to 40 ml/min

Specification

Liquid flow
Full scale flow rate (H2O)
40000
ul/min
Accuracy (H2O)
5
%
Repeatability (H2O)
0.5
%
Maximum operating pressure
12
bar
Fluidic connector ports
1/4-28 flat bottom
Generic
Supply voltage
4 - 6
V
Average supply current
51000
uA
Max. supply current
6000
uA
Interfaces
Analog voltage, Analog current, I²C, RS485
Package size (LxWxH)
59 x 18 x 18
mm³

Technical downloads

Name
Type
Date
File
Size
Datasheet LS32-1500
Datasheet
01/2017
PDF
261.4 KB
Datasheet sensor cable SCC1-Analog
Datasheet
10/2017
PDF
616.1 KB
Datasheet sensor cable SCC1-Current
Datasheet
10/2017
PDF
581.4 KB
Implementation Guide to the I²C Protocol
Application note
02/2022
PDF
1.2 MB
SCC1-Analog configurator
Software
10/2021
MSI
3.6 MB
STEP file LS32-1500
CAD
10/2021
STEP
2.0 MB
Table overview Lx
Flyer
07/2019
PDF
167.1 KB
Viewer software USB/RS485 (V. 2.91)
Viewer software
10/2021
MSI
1.7 MB
Datasheet SCC1-USB, SCC1-RS485 sensor cable
Datasheet
06/2018
PDF
229.4 KB
Analog cable configurator
Application note
04/2017
PDF
274.2 KB
Chemical resistance
Application note
07/2020
PDF
134.7 KB
Cleaning and clean handling
Application note
06/2019
PDF
159.4 KB
Formation, prevention and removal of biofilms
Application note
07/2020
PDF
294.8 KB
Getting started guide liquid flow
Application note
10/2021
PDF
173.9 KB
Pulsation damping kit
Application note
01/2020
PDF
457.8 KB
Selection guide liquid flow sensors
Application note
08/2020
PDF
281.9 KB
Sensor fluidic ports and tubing connections
Application note
08/2020
PDF
657.4 KB
Toolbox overview liquid flow
Application note
10/2021
PDF
97.0 KB
Quick start guide liquid flow meter kit
User guide
07/2018
PDF
444.3 KB
Quick start guide pulsation damping kit
User guide
01/2003
PDF
86.9 KB
SCC1-RS485 configurator (V. 1.8)
Software
10/2021
MSI
2.2 MB
SCC1-RS485 sensor cable DLL
Software
07/2022
ZIP
1.1 MB
REACH and RoHS declaration SLF
Certificate
07/2022
PDF
98.1 KB
Product brochure LF
Flyer
07/2021
PDF
2.5 MB

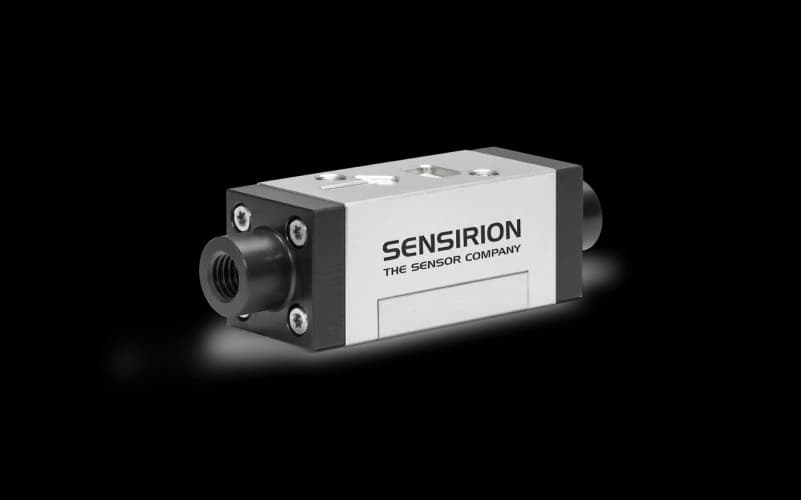

Sensirion offers the compact and chemical-resistant liquid flow meter LS32-1500 for integration into instruments and other closed systems with low flow rates of up to 40 ml/min.

With a compact form factor of just 18x18x59 mm³, the LS32-1500 liquid flow meter is mechanically extremely robust. Its fast response time of 20 ms, excellent repeatability and outstanding chemical resistance make the sensor ideal for use in biomedical applications. The sensor is highly versatile and can be used in fuel cells, for example, as well as a wide range of applications in dosage control and industrial automation monitoring.

The use of high-performance stainless steel, PTFE, and PEEK ensures outstanding media-compatibility and exceptional chemical resistance. Customized solutions (e.g. downmount version for manifold systems) based on the design of the LS32-1500 are also feasible.

The LS32-1500 liquid flow meter offers a cost-efficient, compact, and reliable sensor solution for the measurement of low flow rates and is an excellent addition to the range of high quality products from Sensirion.

The LS32-1500 liquid flow meter has its largest benefit when integrated into an instrument or a closed system. For standalone applications, laboratory setups or bench-top testing, please have a look at our SLS-1500 liquid flow meter, which offers a robust interface for plug-and-play operations.
