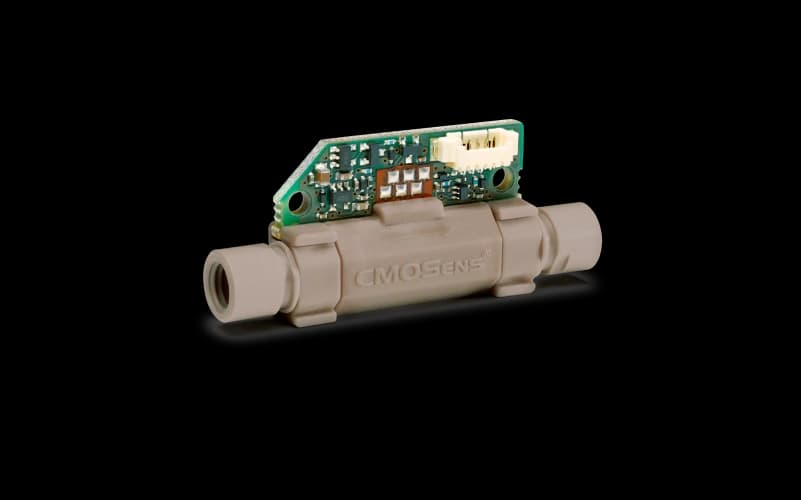

Compact liquid flow sensor for hydrocarbons up to 80 ml/min
Specification
Liquid flow
Full scale flow rate
(IPA)
80
ml/min
Accuracy
(IPA)
10
%
Repeatability
(IPA)
1.5
%
Maximum operating pressure
15
bar
Fluidic connector ports
1/4-28 flat bottom
Generic
Supply voltage
4 - 12
V
Average supply current
68000
uA
Max. supply current
68000
uA
Interfaces
Analog voltage, Analog current, I²C, RS485
Package size (LxWxH)
53 x 22 x 9
mm³
