LD20-2600B

Low flow rates up to 1000 ml/h in a single-use sensor design

Specification

Liquid flow
Full scale flow rate (H2O)
16666
ul_min
Accuracy (H2O)
5
%
Repeatability (H2O)
0.5
%
Maximum operating pressure
3
bar
Fluidic connector ports
Luer lock fittings
Generic
Supply voltage
3.2 - 3.8
V
Max. supply current
6
μA
Interfaces
I²C, RS485
Package size (LxWxH)
48 x 15.5 x 6.8
mm³

Technical downloads

Name
Type
Date
File
Size
Datasheet LD20-2600B
Datasheet
09/2020
PDF
887.1 KB
STEP file LD20-2600B
CAD
10/2021
STEP
1.6 MB
Engineering guidelines LD20 base station
Application note
09/2020
PDF
375.0 KB
Operating guidelines for liquid flow meter kits (SLF3x and LD20)
Application note
06/2019
PDF
552.3 KB
STEP file LD20 base station
CAD
10/2021
STEP
2.5 MB
Product flyer LD20
Flyer
10/2017
PDF
583.4 KB
Viewer software USB/RS485 (V. 2.91)
Viewer software
10/2021
MSI
1.7 MB
Datasheet SCC1-USB, SCC1-RS485 sensor cable
Datasheet
06/2018
PDF
229.4 KB
Analog cable configurator
Application note
04/2017
PDF
274.2 KB
Chemical resistance
Application note
07/2020
PDF
134.7 KB
Cleaning and clean handling
Application note
06/2019
PDF
159.4 KB
Formation, prevention and removal of biofilms
Application note
07/2020
PDF
294.8 KB
Getting started guide liquid flow
Application note
10/2021
PDF
173.9 KB
Pulsation damping kit
Application note
01/2020
PDF
457.8 KB
Selection guide liquid flow sensors
Application note
08/2020
PDF
281.9 KB
Sensor fluidic ports and tubing connections
Application note
08/2020
PDF
657.4 KB
Toolbox overview liquid flow
Application note
10/2021
PDF
97.0 KB
Quick start guide liquid flow meter kit
User guide
07/2018
PDF
1.0 MB
Quick start guide pulsation damping kit
User guide
01/2003
PDF
86.9 KB
SCC1-RS485 configurator (V. 1.8)
Software
10/2021
MSI
2.2 MB
SCC1-RS485 sensor cable DLL
Software
10/2021
ZIP
908.5 KB
REACH and RoHS declaration SLF
Certificate
07/2021
PDF
97.9 KB
Product brochure LF
Flyer
07/2021
PDF
2.4 MB

Buy the following product to evaluate this sensor

Safe, precise, and reliable measurement of low flow rates in medical environment has never been so easy: The single-use liquid flow sensors of the LD20 series measure the liquid flow rate directly and at the point of interest for a more effective patient treatment and improved safety.

Nowadays, keywords and trends such as point-of-care, patient compliance, complex drug administering, and wearable designs demand the development of smart medical devices. The LD20 series combines Sensirion’s proven liquid flow sensing technology with a single-use, cost-optimized design for high volume applications in the medical, life-science or food industry. The sensor provides a bidirectional measurement of flow rates from 1000 ml/h down to single-digit ml/h, while it as well reliably detects common failure modes such as occlusion, free flow, or air bubbles with unprecedented speed and sensitivity.

The LD20 series optimizes costs by reducing the flow sensor to its bare minimum while still ensuring easy fluidic, electrical and mechanical connections. Barbed or luer lock fittings guarantee secure and straight-forward integration into the fluidic line: for example, into a catheter or an infusion set. Inert wetted materials provide outstanding chemical resistance and excellent media compatibility.

When using a sensor of the LD20 series, drug delivery can be measured precisely and in real time. Consequentially, drug therapies become more effective, as they become easier to monitor and control. The LD20 liquid flow sensor series enables medical device manufacturers to enhance the safety, performance, and reliability of their products for the benefit of patients and care givers.

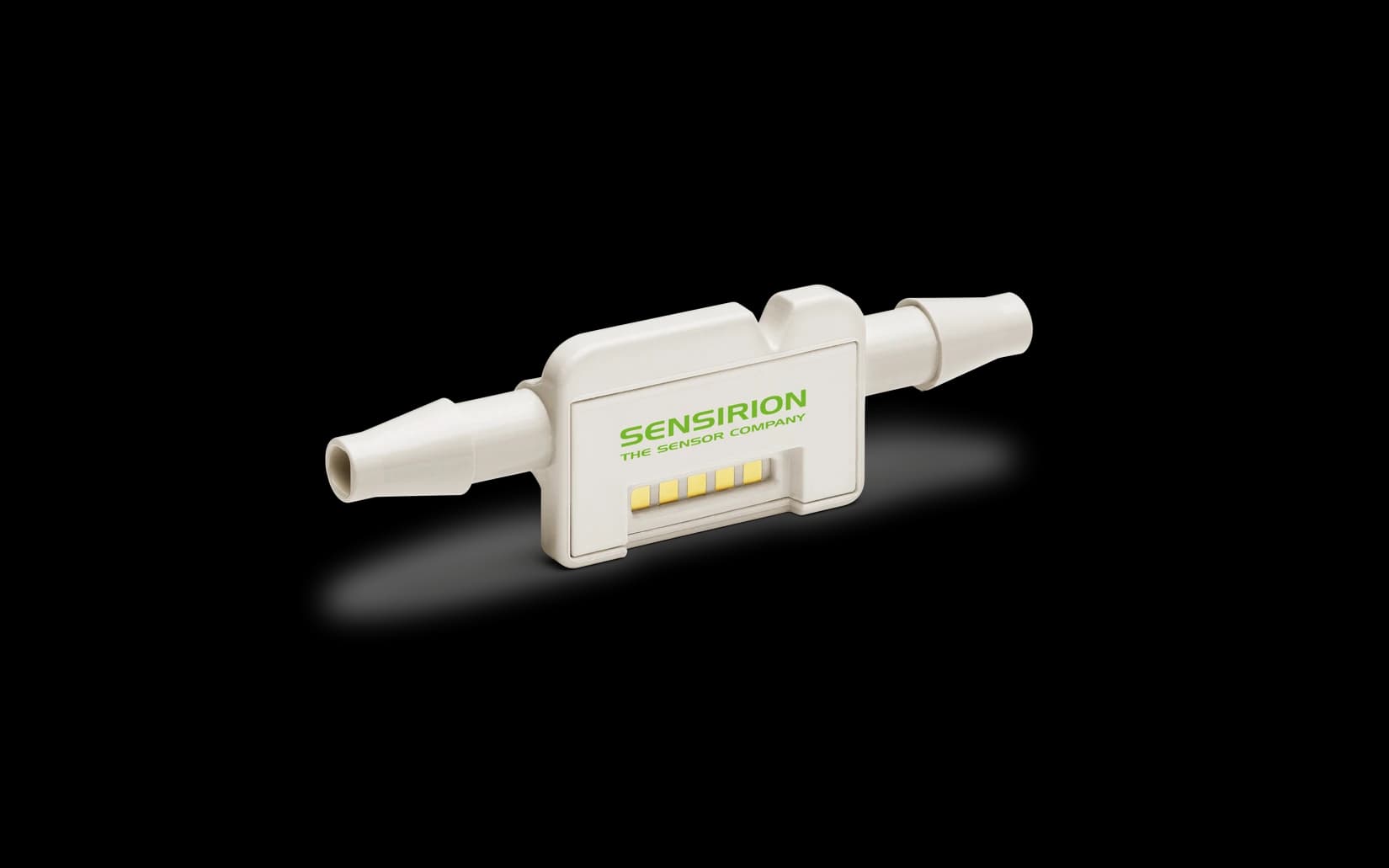

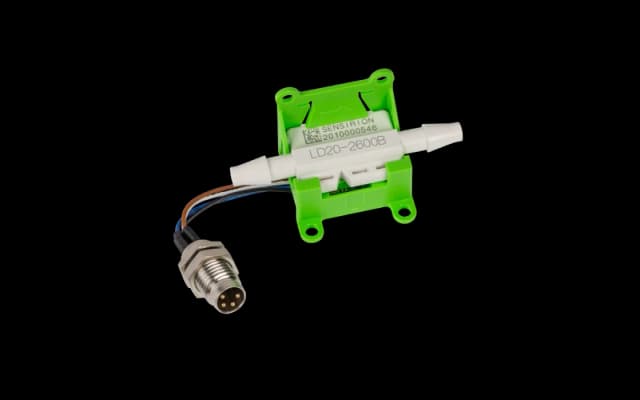

Product impressions
