SDP600-125Pa
NRNDDifferential pressure sensor (±125 Pa), manifold connection
The digital differential pressure sensors of the SDP600 series provide a digital I²C output, excellent long-term stability and measure with high sensitivity and accuracy even at low differential pressures (10 Pa). Thanks to its high integration level and clever packaging, the reliable CMOSens® sensor can be offered at an economical price.
The fully calibrated and temperature compensated sensors are available in different versions. The SDP600 is intended for a direct threaded connection to a pressure manifold via O-ring sealing, while the SDP610 is designed for a tube connection. SDP600 series is designed for high-quality mass production, which makes it an ideal fit for demanding OEM applications.

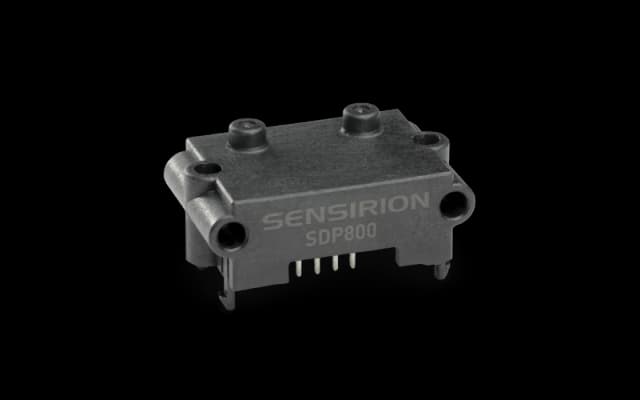

Successor product
Specification
| Differential pressure | |||
|---|---|---|---|
| Pressure range 125 - 125 | 125 - 125 | Pa | |
| Accuracy 3 | 3 | % m.v. |
| Generic | |||
|---|---|---|---|
| Supply voltage 3 - 3.6 | 3 - 3.6 | V | |
| Max. supply current 6000 | 6000 | uA | |
| Interfaces I²C | I²C | ||
| Size (LxWxH) 29 x 18 x 17.55 | 29 x 18 x 17.55 | mm |
