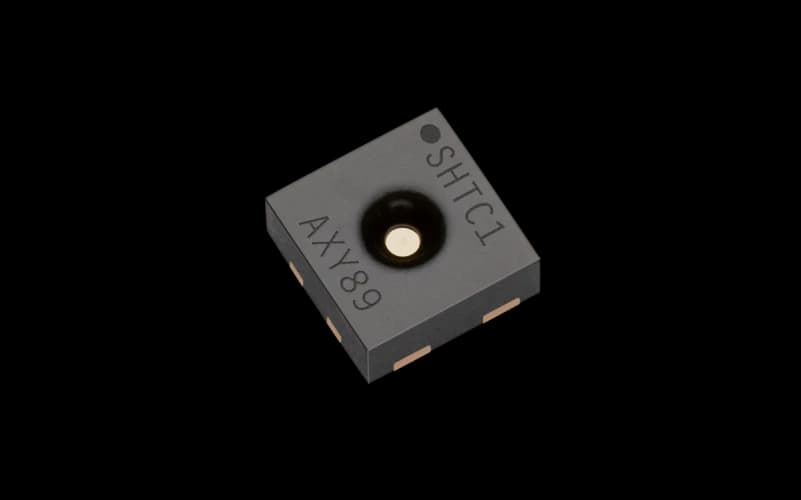

SHTC1

±3% Digital humidity and temperature sensor

Specification

Humidity
Typ. relative humidity accuracy
3
%RH
Operating relative humidity range
0 - 100
%RH
Response time (τ63%)
8
s
Calibration certificate
Factory calibration
Temperature
Typ. temperature accuracy
0.3
°C
Operating temperature range
-40 - 125
°C
Response time (τ63%)
5
s
Generic
Supply voltage
1.62 - 1.98
V
Average supply current
4.8
uA
Max. supply current
465
uA
Interfaces
I²C
Package size (LxWxH)
2 x 2 x 0.7
mm³
Packaging size
500(Sampling), 1000, 10000
pcs (T&R)

Technical downloads

Name
Type
Date
File
Size
Datasheet SHTC1
Datasheet
08/2015
PDF
811.2 KB
Application guide SHTC1
Application note
02/2013
PDF
179.0 KB
Low power mode SHTC1, SHTW2
Application note
05/2016
PDF
99.0 KB
Optimization of sensor output repeatability
Application note
05/2016
PDF
103.1 KB
Sample code SHTC1
Software
05/2016
PDF
286.6 KB
STEP file SHTC1
CAD
10/2021
ZIP
32.9 KB
Calibration certification SHT
Certificate
08/2021
PDF
110.4 KB
Conditions of thermal comfort
Application note
02/2010
PDF
63.0 KB
ESD, Latch-up and EMC
Application note
03/2009
PDF
148.9 KB
How to understand specification of relative humidity sensors
Application note
04/2021
PDF
306.8 KB
Humidity at a glance
Application note
06/2021
PDF
178.3 KB
Introduction to humidity
Application note
08/2009
PDF
224.9 KB
Design-in guide SHT/STS
User guide
05/2019
PDF
458.7 KB
Handling instructions SHT
User guide
06/2021
PDF
313.4 KB
REACH and RoHS declaration SHT/STS
Certificate
07/2022
PDF
93.7 KB
Humidity sensors brochure
Flyer
01/2022
PDF
936.7 KB
Indoor air quality brochure
Flyer
10/2021
PDF
7.7 MB

The SHTC1 is a digital humidity sensor designed especially for high-volume consumer electronics applications. This humidity sensor is strictly designed to overcome conventional limits for size, power consumption, and price-performance ratio, in order to fulfill the current and future requirements of the consumer electronics market.

Sensirion’s CMOSens® technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a band-gap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I²C fast mode. The ultra-small, 2 × 2 × 0.75 mm³ DFN package enables applications to be placed in even the most limited of spaces. The sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30°C to 100°C with a typical accuracy of ±3 %RH and ±0.3°C.

The operating voltage of 1.8 V and an energy budget below 1 µJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the lowest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity sensors and constant accuracy over a large measurement range, the SHTC1 humidity sensor offers an unprecedented price-performance ratio. Tape and reel packaging together with suitability for standard SMD assembly processes make the SHTC1 predestined for high-volume applications.
